T1AXK3F4PD

4-Door Altronix/Axis Access and Power Integration Kit - Trove1DR1 with eFlow6NB, PD8ULCB

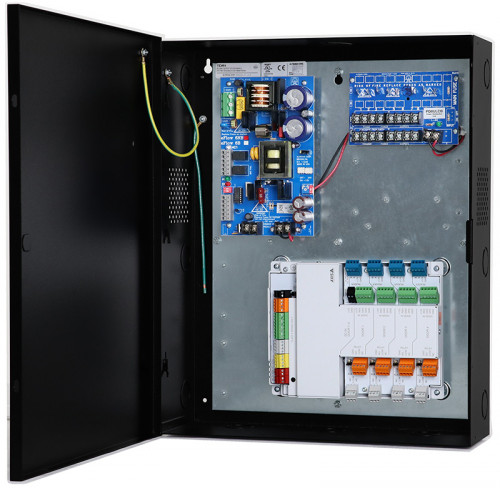

Altronix T1AXK3F4PD kit consists of Trove1 enclosure, TDR1 DIN Rail/Altronix backplane with one (1) 12VDC @ 6A power supply/charger, and one (1) PTC protected power distribution module. This kit also accommodates one (1) A1710B for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • eFlow6NB Power Supply/Charger
      • Input
        • Voltage: 120VAC, 60Hz, 3.5A max.
        • Input Fuse: 5A / 250V.
      • Outputs
        • Voltage: 12VDC or 24VDC selectable.
        • Current: 6A continuous max.
        • Auxiliary: Power-limited @ 1A (unswitched).
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Capacity: 7AH/12VDC (2 within enclosure); 40AH/65AH (requires separate enclosure)
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Fire Alarm Disconnect
    • Supervised: Latching or non latching.
    • EOL: 10K Resistor.
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • Indicators LED
    • Input: 120VAC is present.
    • DC Output: Powered.
  • PD8ULCB Power Distribution Module
      • Input
        • Voltage: 12VDC from eFlow6NB
      • Outputs
        • Voltage: 12VDC.
        • PTCs: 2.5A.
      • Indicators LED
        • Green LED: DC Output.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 87 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove1 1 Access and Power Integration Enclosure, Requires compatible Trove1 Series Backplane
TDR1 1 Trove1 Backplane for Altronix with DIN Rail streamlined package
eFlow6NB 1 Power Supply Charger, Single Output, 12/24VDC @ 6A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
PD8ULCB 1 Power Distribution Module, 8 PTC Outputs up to 28VAC/VDC, Board
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/7AH Batteries.
  • Dimensions 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
  • 1", 3/4" and 1 1/2" knockouts.
Weights (approximate):
  • Product Weight: 15.5 Lbs. (7 kg).
  • Shipping Weight: 19.5 Lbs. (8.9 kg).
Print

Access controllers not included

*Batteries sold separately
