T1DK3FA4D

4-Door Altronix/DIN Rail Access and Power Integration Kit - Trove1DR1 with eFlow6NTB, ACM4CB, D12, RSB1

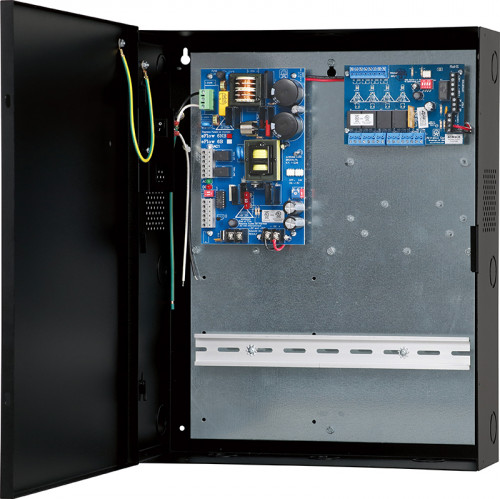

Altronix T1DK3FA4D kit consists of Trove1 enclosure, TDR1 DIN Rail/Altronix backplane with one (1) 12 or 24VDC @ 6A power supply/charger and one (1) PTC access power controller. This kit also accommodates any DIN Rail mountable products for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • eFlow6NTB Power Supply/Charger
      • Input
        • Voltage: 120VAC, 60Hz, 3.5A max.
        • Main Fuse: 5A / 250V.
      • Outputs
        • Voltage: 12VDC or 24VDC selectable
        • Current: 6A continuous max.
        • Auxiliary: Power-limited @ 1A (unswitched)
        • Other: Overvoltage protection. Filtered and regulated
  • Battery Charging
    • Capacity: 7AH/12VDC (2 within enclosure), 40AH/65AH (requires separate enclosure)
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Fire Alarm Disconnect
    • Supervised: Latching or non-latching
    • EOL: 10K Resistor
  • Supervision
    • AC Failure: Form “C” contacts
    • Battery: Form “C” contacts
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge
  • Indicators LED
    • Input: 120VAC is present
    • DC Output: Powered
  • ACM4CB Access Power Controller
      • Input
        • 12VDC or 24VDC from eFlow6NTB
        • Input PTC: 9A.
      • Outputs
        • Voltage: 24VDC.
        • Four (4) independently controlled PTC outputs:
        • a) Four (4) Fail-Safe and/or Fail-Secure power outputs
        • b) Four (4) auxiliary power outputs (unswitched)
        • c) Any combination of the above
      • Outputs Ratings
        • PTCs: 2.5A.
      • Indicators (LED)
        • Red LEDs: Outputs are triggered (relays energized)
        • Green LED: FACP disconnect is triggered
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 40 BTU/Hr.
        • 24VDC: 77 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove1 1 Access and Power Integration Enclosure, Requires compatible Trove1 Series Backplane
TDR1 1 Trove1 Backplane for Altronix with DIN Rail streamlined package
eFlow6NTB 1 Power Supply/Charger Board with Removable AC Input Terminal Block
ACM4CB 1 Access Power Controller, 4 PTC Class 2 Relay Outputs, FAI, Board
D12 1 DIN Rail,12" inch
RSB1 1 Single Power ON/OFF Rocker Switch with Mounting Bracket
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
  • 1", 3/4" and 1 1/2" knockouts.
Weights (approximate):
  • Product Weight: 15.5 Lbs. (7 kg).
  • Shipping Weight: 19.5 Lbs. (8.9 kg).
Print

Access controllers not included
