T1M1CK2D

2-Door Altronix/Mercury Access and Power Integration Wired Kit - Trove1M1 with eFlow4NB, ACM4CB, PDS8CB, VR6, RSB1

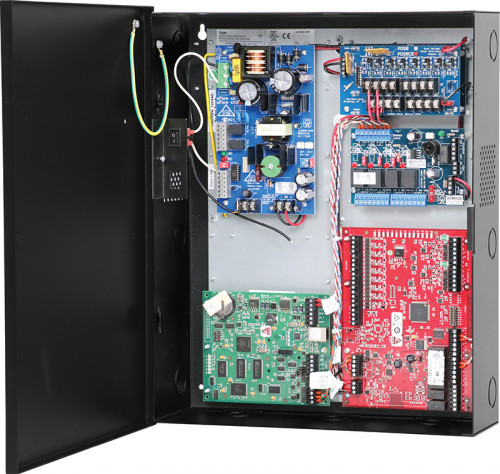

Altronix T1M1CK2D is a 2-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T1M1CK2D accommodates one (1) Intelligent Controller and one (1) Dual Reader Interface Module Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.

*Also compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt

  • eFlow4NB Power Supply/Charger
      • Input
        • Voltage: 120VAC, 60Hz, 3.5A.
        • Fusing: 5A / 250V.
      • Output
        • Voltage: 24VDC.
        • Current: 4A continuous.
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Capacity: 7AH / 12VDC (Up to 2 within enclosure). 40 AH / 65 AH (requires separate enclosure).
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • Indicators LED
    • Input: 120VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected.
  • PDS8CB Dual Input Power Distribution Module
      • Input
        • Voltage: 12VDC from VR6 and 24VDC from eFlow4NB.
        • Input PTC: 9A.
      • Outputs
        • Voltage 12VDC and/or 24VDC.
        • Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
      • Outputs Ratings
        • PTCs 2.5A.
      • Indicators LED
        • DC Output: Eight (8) individual output LEDs.
        • Green: 12VDC
        • Red: 24VDC.
  • VR6 Voltage Regulator
      • Input
        • Voltage: 24VDC from eFlow4NB.
      • Output
        • Voltage: 12VDC.
        • Current: 6A continuous.
        • Other: Surge suppression.
      • Indicators LED
        • Input: 24VDC is present.
        • Output: Powered.
  • ACM4CB Access Power Controller
      • Input
        • 24VDC from eFlow4NB.
        • Input PTC 9A.
      • Outputs
        • Voltage: 24VDC.
        • Four (4) independently controlled PTC outputs:
        • a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
        • Form “C” Relays rated 28VAC or VDC @ 2.5A.
        • b) Auxiliary power outputs (unswitched).
        • c) Any combination of the above.
      • Outputs Ratings
        • PTCs: 2.5A.
      • Indicators (LED)
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 90 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove1 1 Access and Power Integration Enclosure, Requires compatible Trove1 Series Backplane
TM1 1 Trove1 Backplane for Altronix & Mercury
ACM4CB 1 Access Power Controller, 4 PTC Class 2 Relay Outputs, FAI, Board
PDS8CB 1 Dual Input Power Distribution Module, 8 PTC Outputs
VR6 1 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
RSB1 1 Single Power ON/OFF Rocker Switch with Mounting Bracket
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/7AH Batteries.
  • Dimensions 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
  • 1", 3/4" and 1 1/2" knockouts.
Weights (approximate):
  • Product Weight: 18 Lbs. (8.17 kg).
  • Shipping Weight: 22 Lbs. (9.98 kg).
Configure Trove Print

Access controllers not included

*Batteries sold separately
