T1PDK7F8D

8-Door Altronix/PDK Access and Power Integration Kit - Trove1PD1 with eFlow104NB, ACMS8CB, VR6. Trove1 Series

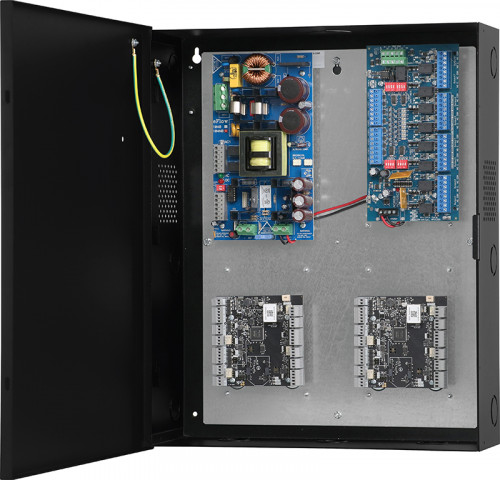

Altronix T1PDK7F8D kit consists of Trove1 enclosure, TPD1 PDK/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) dual input eight (8) PTC protected output access control module and one (1) voltage regulator. This kit also accommodates up to two (2) PDK red modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • eFlow104NB Power Supply/Charger
      • Input
        • Voltage: 120VAC, 60Hz, 4.5A max.
        • Main Fuse: 6.5A / 250V.
      • Output
        • Voltage: 24VDC.
        • Current: 10A continuous.
        • Auxiliary: Class 2 power-limited @ 1A (unswitched).
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Capacity: 7AH/12VDC (2 within enclosure); 40AH/65AH (requires separate enclosure).
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Fire Alarm Disconnect
    • Supervised: Latching or non-latching.
    • EOL: 10K Resistor.
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge.
  • Indicators LED
    • Input: 120VAC is present.
    • DC Output: Powered.
  • VR6 Voltage Regulator
      • Input
        • Voltage: 24VDC from eFlow104NB
      • Output
        • Voltage: 12VDC.
        • Current: 6A continuous.
        • Other: Surge suppression.
      • Indicators (LED)
        • Input: 24VDC is present.
        • Output: Powered.
  • ACMS8CB Dual Input Access Power Controller
      • Input
        • Voltage: 24VDC from eFlow104NB and 12VDC from VR6.
        • Input PTC: 9A.
      • Outputs
        • Voltage: 12VDC and/or 24VDC.
        • Eight (8) selectable independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs.
        • b) Form “C” Relays. 28VAC or VDC @ 2.5A Rated.
        • c) Auxiliary power outputs (unswitched).
        • d) Any combination of the above.
        • Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
      • Outputs Ratings
        • PTCs: 2.5A.
      • Indicators (LED)
        • Red LEDs: Outputs are triggered (relays energized).
        • Blue LED: FACP disconnect is triggered.
        • Individual voltage LEDs:
        • Green: 12VDC.
        • Red: 24VDC.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 123 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove1 1 Access and Power Integration Enclosure, Requires compatible Trove1 Series Backplane
TPD1 1 Trove1 Backplane for Altronix/PDK
eFlow104NB 1 Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
ACMS8CB 1 Dual Input Access Power Controller, 8 PTC Protected Outputs, Board
VR6 1 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/7AH Batteries.
  • Dimensions 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
  • 1", 3/4" and 1 1/2" knockouts.
Weights (approximate):
  • Product Weight: 15.5 Lbs. (7 kg).
  • Shipping Weight: 19.5 Lbs. (8.9 kg).
Print

Access controllers not included

*Batteries sold separately
