Altronix Access and Power Integration Kit - Trove1AL1R with eFlow6NB, eFlow4NB, ACM8, PD8UL

News Flash… Altronix lead time for all Trove Access & Power Integration kits are now 15 days max.

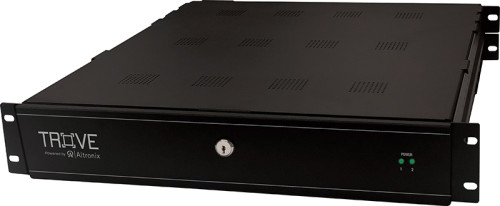

Altronix T1RAL13F8P8 Trove Rack kit is pre-assembled and consist of Trove1AL1R enclosure/backplane with factory installed Altronix power supply/chargers and sub -assemblies.

  • eFlow6NB Power Supply/Charger
      • Input
        • Voltage: 120VAC, 60Hz, 3.5A max.
        • Fusing: 5A / 250V.
      • Outputs
        • Voltage: Factory set: 24VDC.
        • Current: 6A continuous.
        • Maximum Supply Current for Main and Aux. Outputs on eFlow6NB Power Supply board, ACM8 Access Power Controller outputs is 5.6A.
        • Auxiliary: Class 2 power-limited @ 1A (unswitched).
        • Other: Overvoltage protection. Filtered and regulated.
  • eFlow4NB Power Supply/Charger
      • Input
        • Voltage: 120VAC, 60Hz, 3.5A max.
        • Main Fuse: 5A / 250V.
      • Outputs
        • Voltage: Factory set: 12VDC.
        • Current: 4A continuous.
        • Maximum Supply Current for Main and Aux. Outputs on eFlow6NB Power Supply board, ACM8 Access Power Controller outputs is 5.6A.
        • Auxiliary: Class 2 power-limited @ 1A (unswitched).
        • Other: Overvoltage protection. Filtered and regulated.
  • Both Power Supplies
      • Battery Charging
        • Type: Sealed lead acid or gel type.
        • Failover: Upon AC loss, instantaneous.
        • (Batteries are sold separately)..
      • Fire Alarm Disconnect
        • Supervised: Latching or non-latching.
        • EOL: 10K Resistor.
      • Supervision
        • AC Failure: Form “C” contacts.
        • Battery: Form “C” contacts.
        • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge.
      • Indicators (LED)
        • Input: 120VAC is present.
        • DC Output: Powered.
        • Battery: Discharged or not connected.
  • ACM8 Access Power Controller
      • Input
        • Voltage: 24VDC from eFlow6NB.
        • Input Fuse: 10A / 32V.
      • Outputs
        • Voltage: 24VDC.
        • Eight (8) independently controlled 2.5A outputs:
        • a) Eight (8) Fail-Safe and/or Fail-Secure power outputs.
        • b) Eight (8) dry form “C” 5A rated relay outputs.
        • c) Any combination of the above.
        • Eight (8) auxiliary power outputs (unswitched).
      • Outputs Ratings
        • Fuses: 3A/32VDC.
      • Indicators (LED)
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • PD8UL Power Distribution Module
      • Input
        • Voltage: 12VDC from eFlow4NB.
      • Outputs
        • Class 2 power-limited auto-resettable outputs.
        • Voltage: 12VDC.
        • PTCs: 2.5A.
      • Indicators (LED)
        • Green LED: DC Output.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 115 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove1AL1R 1 Altronix Access and Power Integration Rack Mount Enclosure with Backplane, Trove1 Rack Series
eFlow4NB 1 Power Supply Charger, Single Output, 12/24VDC @ 4A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
eFlow6NB 1 Power Supply Charger, Single Output, 12/24VDC @ 6A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
ACM8 1 Access Power Controller, 8 Fused Relay Outputs, FAI, Board
PD8UL 1 Power Distribution Module, 8 Fused Outputs up to 28VAC/VDC, Board
Enclosure:
  • Trove Rack Mount Enclosure
  • Dimensions 19"W x 3.25"H x 26.5"D (482.6 mm W x 82.6 mm H x 673.1 mm D).
  • Rails extend to 36" (914.4mm). Ample knockouts for convenient use.
Weights (approximate):
  • Product Weight: 20 Lbs. (9.07 kg).
  • Shipping Weight: 25 Lbs. (11.34 kg).
Print

Access controllers not included

*Batteries sold separately
Documentation A&E Specs
Lifetime Warranty Locate a Distributor
