T1RM3CK1V

4-Door Altronix/Mercury Access and Power Integration Wired Rack Mount Kit - Trove1M1R with eFlow6NBV, ACM4, PDS8, VR6

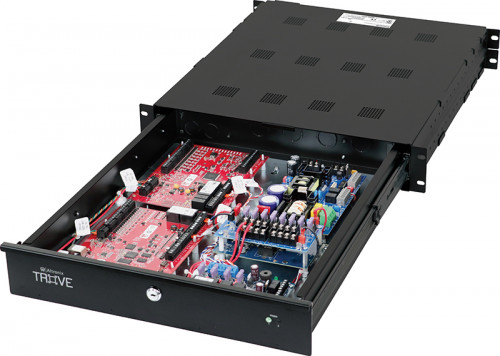

Altronix T1RM3CK1V is a 4-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T1RM3CK1V accommodates one (1) Intelligent Dual Reader Controller and one (1) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.

*Also compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt

  • eFlow6NBV Power Supply/Charger
      • Input
        • Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.5A.
        • Fusing: 5A / 250V.
      • Output
        • Voltage: 24VDC.
        • Current: 6A continuous.
        • Auxiliary: 1A (unswitched).
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • Indicators LED
    • Input: 220VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected.
  • PDS8 Power Distribution Module
      • Input
        • Voltage: 24VDC from eFlow6NBV and 12VDC from VR6.
        • Fusing: 10A / 32V.
      • Outputs
        • Voltage: 12VDC and/or 24VDC.
        • Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2
        • Individual outputs may be set to OFF position for servicing
        • Fuses Rating: 3A / 32V.
      • Indicators (LED)
        • DC Output: Eight (8) individual output LEDs.
        • Green: 12VDC
        • Red: 24VDC.
  • VR6 Voltage Regulator
      • Input
        • Voltage: 24VDC from eFlow6NBV.
      • Output
        • Voltage: 12VDC.
        • Current: 6A continuous.
        • Other: Surge suppression.
      • Indicators (LED)
        • Input: 24VDC is present.
        • Output: Powered.
  • ACM4 Access Power Controller
      • Input
        • Voltage: 24VDC from eFlow6NBV.
        • Fusing: 10A / 32V.
      • Output
        • Voltage: 24VDC.
        • Four (4) independently controlled fused outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs
        • Form “C” Relays rated 28VAC or VDC @ 2.5A
        • b) Auxiliary power outputs (unswitched).
        • c) Any combination of the above.
        • Fuses Rating: 3A / 32V.
      • Indicators (LED's)
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 87 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove1M1R 1 Altronix/Mercury Access and Power Integration Rack Mount Enclosure with Backplane, Trove1 Rack Series
eFlow6NBV 1 Power Supply Charger, Single Output, 12/24VDC @ 6A, Aux Output, FAI, LinQ2 Ready, 220VAC, Board
ACM4 1 Access Power Controller, 4 Fused Relay Outputs, FAI, Board
PDS8 1 Dual Input Power Distribution Module, 8 Fused Outputs
VR6 1 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
Enclosure:
  • Trove Rack Mount Enclosure
  • Accommodates up to four (4) 12VDC/7AH Batteries.
  • Dimensions 19"W x 3.25"H x 26.5"D (482.6 mm W x 82.6 mm H x 673.1 mm D).
  • Rails extend to 36" (914.4mm). Ample knockouts for convenient use.
Weights (approximate):
  • Product Weight: 20 Lbs. (9.07 kg).
  • Shipping Weight: 25 Lbs. (11.34 kg).
Configure Trove Print

Access controllers not included

*Batteries sold separately
Documentation A&E Specs
