T3DK77F24D

24-Door Altronix/DIN Rail Access and Power Integration Kit - Trove3TV3 with Two (2) eFlow104NTB, Two (2) ACMS12CB, PD8ULCB, Four (4) D19, RSB2

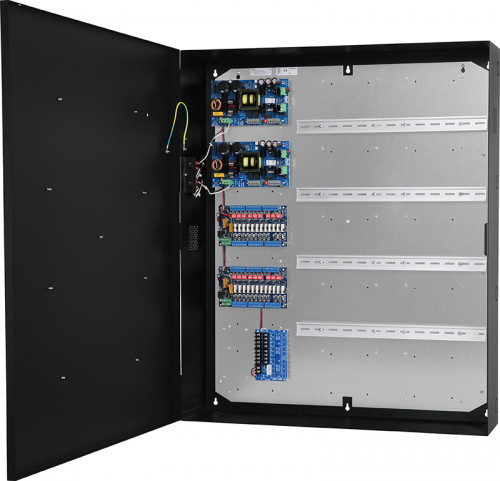

Altronix T2DK77F24 kit consists of Trove3 enclosure and TV3 Altronix/HID/DIN Rail backplane with two (2) 24VDC @ 10A power supply/chargers, two (2) twelve (12) output PTC protected access control modules and one (1) eight (8) PTC protected power distribution module. This kit also accommodates any DIN Rail mountable products for up to twenty four (24) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • Two (2) eFlow104NTB Power Supply/Chargers
      • Input
        • Voltage: 120VAC, 60Hz, 4.5A.
        • Input Fuse: 6.3A/250V
      • Output
        • Voltage: 24VDC
        • Current: 10A continuous
        • Auxiliary: 1A (unswitched)
        • Other: Overvoltage protection. Filtered and regulated
  • Battery Charging
    • Capacity: 12VDC/12AH (2 within enclosure), 40AH/65AH (requires separate enclosure)
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Supervision
    • AC Failure: Form “C” contacts
    • Battery: Form “C” contacts
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge
  • Indicators LED
    • Input: 120VAC is present
    • DC Output: Powered
    • Battery: Discharged or not connected
  • PD8ULCB Power Distribution Module
      • Input
        • Voltage: 12VDC from eFlow104NTB
      • Outputs
        • Voltage: 24VDC
        • PTCs: 2.5A.
      • Indicators LED
        • Green LED: DC Output
  • Two (2) ACMS12 Dual Input Access Power Controllers
      • Input
        • Voltage: 24VDC from eFlow104NTB
        • Input PTCs: 9A.
      • Outputs
        • Voltage: 12VDC and/or 24VDC
        • Twelve (12) independently controlled PTC outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
        • b) Auxiliary power outputs (unswitched)
        • c) Any combination of the above
      • Outputs Ratings
        • PTCs: 2.5A.
      • Indicators (LED's)
        • Red LEDs: Outputs are triggered (relays energized)
        • Green LED: FACP disconnect is triggered
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F)
        • Storage: - 20° C to 70° C ( - 4° F to 158° F)
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 263 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove3 1 Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane
TV3 1 Trove3 Backplane for Altronix/HID-Vertx
eFlow104NTB 2 Power Supply/Charger Board with Removable AC Input Terminal Block
ACMS12CB 2 Dual Input Access Power Controller, 12 PTC Protected Outputs, Board
PD8ULCB 1 Power Distribution Module, 8 PTC Outputs up to 28VAC/VDC, Board
D19 4 DIN Rail, 19" inch
RSB2 1 Dual Power ON/OFF Rocker Switches with Mounting Bracket
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 87.2 Lbs. (39.6 kg).
  • Shipping Weight: 100.5 Lbs. (45.6 kg).
Print

Access controllers not included

*Batteries sold separately
