T3HWK75F16D

16-Door Altronix/Honeywell Access and Power Integration Kit - Trove3HW3 with THWD2, eFlow104NB, eFlow102NB, (2) ACM8CB, PD8ULCB, RSB2

Altronix T3HWK75F16D kit consists of Trove3 enclosure, THW3 Honeywell/Altronix backplane and THWD2 Honeywell/Altronix door backplane with one (1) 24VDC @ 10A and one (1) 12VDC @ 10A power supply/chargers, two (2) 8-output PTC access power controllers and one (1) 8-output PTC power distribution module. Also featured is a rocker switch bracket with two (2) rocker switches.
THW3 backplane accommodates up to six (6) Honeywell 3200 Series or WIN-PAK Series boards and up to two (2) Honeywell PRO22MX8 boards for up to sixteen (16) doors in a single enclosure. THWD2 accommodates additional one (1) Honeywell PRO22MX8 and up to six (6) Honeywell 3200 Series or WIN-PAK Series.
Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • eFlow104NB Power Supply/Charger - 1
      • Input
        • Voltage: 120VAC, 60Hz, 4.5A max.
        • Main Fuse: 6.5A / 250V.
      • Output
        • Voltage: 24VDC.
        • Current: 10A continuous.
  • eFlow102NB Power Supply/Charger - 2
      • Input
        • Voltage: 120VAC, 60Hz, 3.5A max.
        • Main Fuse: 5A / 250V.
      • Output
        • Voltage: 12VDC.
        • Current: 10A continuous.
  • Both Power Supplies
      • Outputs
        • Auxiliary: Class 2 power-limited @ 1A (unswitched).
        • Other: Overvoltage protection. Filtered and regulated.
      • Battery Charging
        • Capacity: 12AH/12VDC (2 within enclosure) 40AH/65AH (requires separate enclosure)
        • Type: Sealed lead acid or gel type
        • Failover: Upon AC loss, instantaneous
        • (Batteries are sold separately).
      • Fire Alarm Disconnect
        • Supervised: Latching or non-latching.
        • EOL: 10K Resistor.
      • Supervision
        • AC Failure: Form “C” contacts.
        • Battery: Form “C” contacts.
        • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units or 71-73% for 12V units. Prevents deep battery discharge.
      • Indicators (LED)
        • AC Input: 120VAC is present.
        • DC Output: Powered.
  • PD8ULCB Power Distribution Module
      • Input
        • Voltage: 24VDC from eFlow104NB.
      • Outputs
        • Voltage: 24VDC.
        • Eight (8) PTC protected outputs. 2.5A per output max.
        • Output PTCs: 2.5A.
      • Indicators (LED)
        • Green LED: DC Output.
  • Two (2) ACM8CB Access Power Controllers
      • Input
        • Voltage: 24VDC from eFlow104NB.
        • Input Fuse: 10A / 250V.
      • Outputs
        • Voltage: 24VDC.
        • Eight (8) independently controlled fused outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs.
        • b) Auxiliary power outputs (unswitched).
        • c) Any combination of the above.
        • Output PTCs: 2.5A
      • Indicators (LED)
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • Environmental
      • Temperature
        • Operating: 0° C to 50° C (32° F to 122° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 177 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
THW3 1 Trove3 Backplane for Altronix/Honeywell, ProWatch, WinPak
Trove3 1 Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane
eFlow104NB 1 Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
eFlow102NB 1 Power Supply Charger, Single Output, 12VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
ACMS8CB 2 Dual Input Access Power Controller, 8 PTC Protected Outputs, Board
PD8ULCB 1 Power Distribution Module, 8 PTC Outputs up to 28VAC/VDC, Board
RSB2 1 Dual Power ON/OFF Rocker Switches with Mounting Bracket

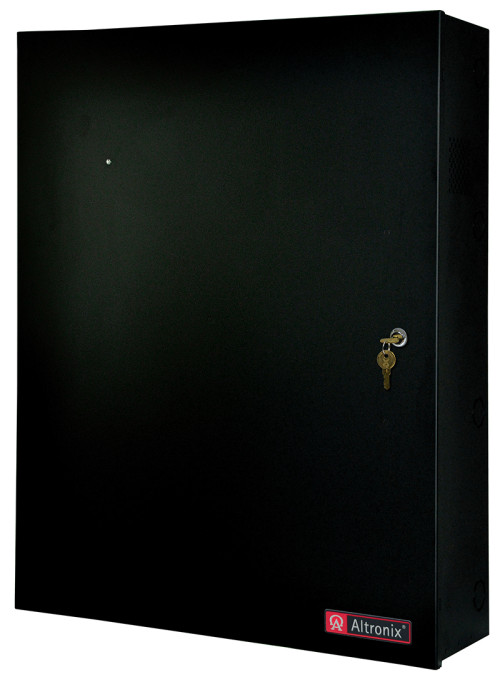

Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 85 Lbs. (38.6 kg).
  • Shipping Weight: 92 Lbs. (41.73 kg).
Print

Access controllers not included

*Batteries sold separately
