T3HWK77F24S

24-Door Altronix/Honeywell Access and Power Integration Kit - Trove3HW3 and THWD2 door backplane with (2) eFlow104NB, (2) VR10, (2) ACMS12, (2) PDS16, RSB2

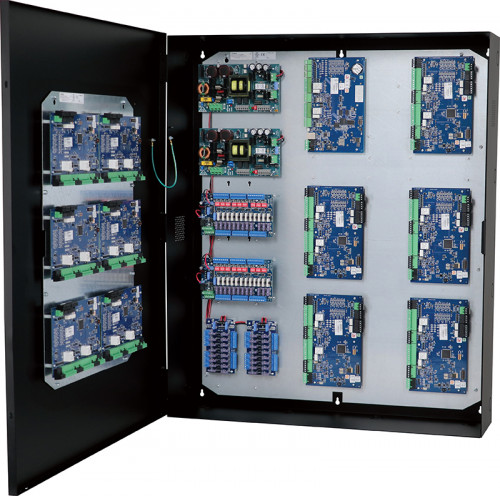

Altronix T3HWK77F24S kit consists of Trove3 enclosure, THW3 Honeywell/Altronix backplane and THWD2 Honeywell/Altronix door backplane with two (1) 24VDC @ 10A power supply/chargers, two (2) 10A voltage regulators, two (2) 12-output fused dual input access power controllers and two (2) 16-output fused dual input power distribution modules. Also featured is a rocker switch bracket with two (2) rocker switches.
Kit also accommodates up to six (6) Honeywell 4200 Series or WIN-PAK Series boards and up to two (2) Honeywell PRO22MX8 boards for up to twenty-four (24) doors in a single enclosure. THWD2 accommodates additional one (1) Honeywell PRO22MX8 and up to six (6) Honeywell 4200 Series or WIN-PAK Series. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • Two (2) eFlow104NB Power Supply/Chargers
      • Input
        • Voltage: 120VAC, 60Hz, 4.5A max.
        • Main Fuse: 6.5A / 250V.
      • Output
        • Voltage: 24VDC
        • Current: 10A continuous
        • Auxiliary: Class 2 power-limited @ 1A (unswitched).
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Capacity: 12VDC/12AH (4 within enclosure), 40AH/65AH (requires separate enclosure)
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Fire Alarm Disconnect
    • Supervised: Latching or non-latching.
    • EOL: 10K Resistor.
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge.
  • Indicators LED
    • AC Input: 120VAC is present.
    • DC Output: Powered.
  • Two (2) ACMS12 Dual Input Access Power Controllers
      • Input
        • Voltage: 24VDC from eFlow104NB and 12VDC from VR10
        • Input Fuse: 15A / 32V.
      • Outputs
        • Voltage: 12 or 24VDC individually selectable
        • Twelve (12) selectable 12VDC or 24VDC independently controlled outputs or twelve (12) independently controlled Form “C” relay outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays. 28VAC or VDC @ 2.5A Rated.
        • b) Auxiliary power outputs (unswitched).
        • c) Any combination of the above.
        • Any of the twelve (12) fuse protected power outputs are selectable to follow power Input 1 or Input 2
        • Individual outputs may be set to OFF position for servicing
      • Outputs Ratings
        • Fuses: 3A/32V.
      • Indicators (LED's)
        • Red LEDs: Outputs are triggered (relays energized).
        • Blue LED: FACP disconnect is triggered.
        • Out1 - Out8: Bi-colored LEDs indicate 12 or 24VDC.
  • Two (2) VR10 Voltage Regulators
      • Input
        • Voltage: 24VDC from eFlow104NB.
      • Output
        • Voltage: 12VDC.
        • Current: 10A continuous.
        • Other: Surge suppression.
      • Indicators LED
        • Input: 24VDC is present.
        • Output: Powered.
  • Two (2) PDS16 Dual Input Power Distribution Modules
      • Input
        • Voltage: 24VDC from eFlow104NB and 12VDC from VR10
        • Input Fuse: 15A / 32V.
      • Outputs
        • Voltage: 12VDC and/or 24VDC.
        • Any of the sixteen (16) power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
      • Outputs Ratings
        • Fuses: 3A/32V.
      • Indicators (LED)
        • DC Output: Eight (8) individual output LEDs
        • Green: 12VDC
        • Red: 24VDC.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 289 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.

TAA Compliant

NDAA Compliant

BAA Compliant
Name Qty Description Agency Listings
Trove3 1 Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane
THW3 1 Trove3 Backplane for Altronix/Honeywell, ProWatch, WinPak
THWD2 1 Honeywell ProWatch/WinPak door backplane for Trove2 and Trove3
eFlow104NB 2 Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
VR10 2 Sub-Assembly Voltage Regulator. 24VDC input into 5VDC or 12VDC output
ACMS12 2 Dual Input Access Power Controller, 12 Fuse Protected Outputs , Board
PDS16 2 Dual Input Power Distribution Module, 16 Fused Outputs
RSB2 1 Dual Power ON/OFF Rocker Switches with Mounting Bracket
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 85 Lbs. (38.6 kg).
  • Shipping Weight: 92 Lbs. (41.73 kg).
Print

Access controllers not included

*Batteries sold separately
