T3MK75F16V

16-Door Altronix/Mercury Access and Power Integration Kit - Trove3M3 with eFlow102NBV, eFlow104NBV, 2-ACM8, PD8UL, RSB2

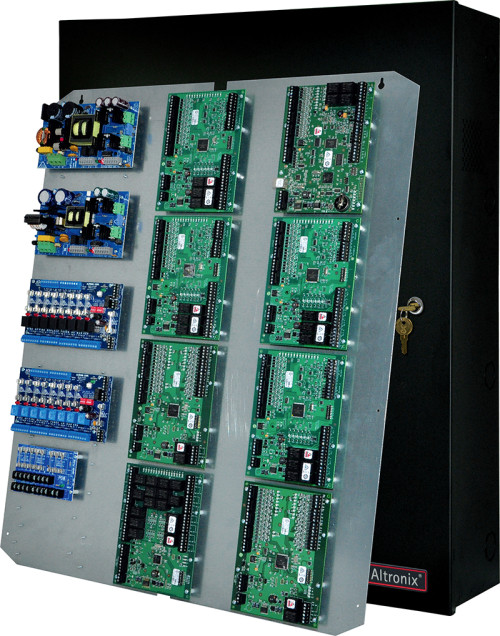

Altronix T3MK75F16V kit consists of Trove3 enclosure and TM3 Mercury/Altronix backplane with 24VDC @ 10A and 12VDC @ 10A power supply/chargers, eight (8) fuse protected output power distribution module and two eight (8) fuse protected output access control modules. This kit also accommodates various combinations of Mercury boards for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
*Compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt

  • eFlow104NBV Power Supply/Charger - 1
      • Input
        • Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.7A.
        • Main Fuse: 6.5A / 250V.
      • Output
        • Voltage: 24VDC @ 10A.
        • Auxiliary: 1A (unswitched).
        • Protection: Overvoltage protection. Filtered and regulated.
  • eFlow102NBV Power Supply/Charger - 2
      • Input
        • Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.1A.
        • Main Fuse: 5A / 250V.
      • Output
        • Voltage: 12VDC @ 10A.
        • Auxiliary: 1A (unswitched).
        • Protection: Overvoltage protection. Filtered and regulated.
  • Both Power Supplies
      • Battery Charging
        • Capacity 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure)
        • Type: Sealed lead acid or gel type
        • Failover: Upon AC loss, instantaneous
        • (Batteries are sold separately).
      • Fire Alarm Disconnect
        • Supervised: Latching or non-latching.
        • EOL: 10K Resistor.
      • Supervision
        • AC Failure: Form “C” contacts.
        • Battery: Form “C” contacts.
        • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
      • Indicators LED
        • AC Input: 220VAC is present.
        • DC Output: Powered.
        • Battery: Discharged or not connected.
  • Two (2) ACM8 Access Power Controllers
      • Input
        • Voltage: 24VDC from eFlow104NBV.
        • Input Fuse: 10A / 250V.
      • Outputs
        • Voltage: 24VDC.
        • Eight (8) 24VDC independently controlled fused outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
        • b) Auxiliary power outputs (unswitched).
        • c) Any combination of the above.
        • Output Fuses: 3.5A / 250V.
      • Indicators LED
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • PD8UL Power Distribution Module
      • Input
        • Voltage: 12VDC from eFlow102NBV.
      • Outputs
        • Voltage: 12VDC.
        • Fuses: 3.5A/250V.
      • Indicators LED
        • Green LED: DC Output.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 217 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove3M3 1 Altronix & Mercury Access and Power Integration Enclosure with Backplane, Trove3 Series
ACM8 2 Access Power Controller, 8 Fused Relay Outputs, FAI, Board
eFlow102NB 1 Power Supply Charger, Single Output, 12VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
eFlow104NB 1 Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
PD8UL 1 Power Distribution Module, 8 Fused Outputs up to 28VAC/VDC, Board
RSB2 1 Dual Power ON/OFF Rocker Switches with Mounting Bracket
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 84.2 Lbs. (38.2 kg).
  • Shipping Weight: 97.5 Lbs. (44.22 kg).
Print

Access controllers not included

*Batteries sold separately
