TAA2

Trove2 Backplane (only) for Altronix/Azure

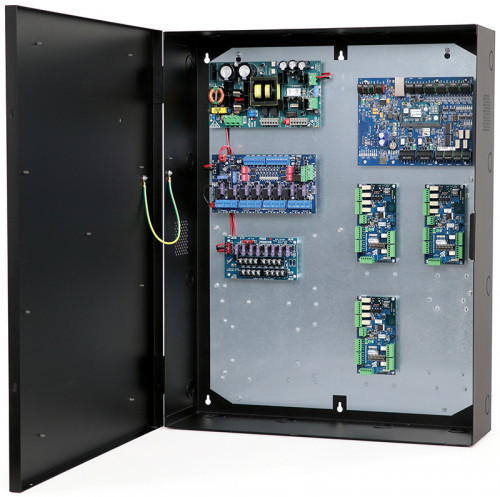

TAA2 accommodates various combinations of Azure boards with or without Altronix power supplies and accessories for access systems.

  • Features
    • 16 Gauge backplane galvanized steel.
    • Includes mounting hardware.
      • Accommodates the following Azure controllers with or without Altronix power/accessories:
        • One (1) IC4 or two (2) IC2 or six (6) RI2M
        • Altronix Power Supplies
        • Altronix Sub-Assemblies
    • Simplifies board layout and wire management
UL Listed For:
Access Control System Units (UL294)
View Certificate
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
View Certificate

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Dimensions (approximate):
  • 0.3125"W x 19.375"L x 25.375"H (8 mm W x 492 mm L x 645 mm H).
Weights (approximate):
  • Product Weight: 8 Lbs. (3.63 kg).
  • Shipping Weight: 10 Lbs. (4.53 kg).
Configure Trove Print

Access controllers not included
