TM2X

Altronix/Mercury/LenelS2 backplane only

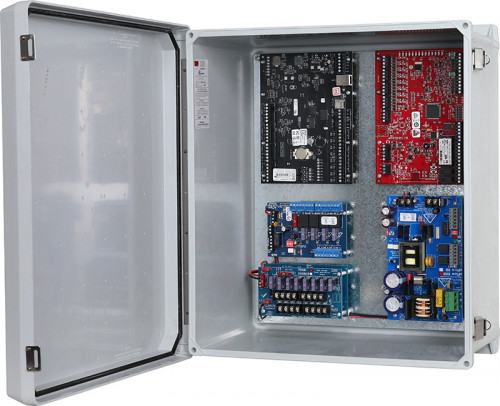

TM2X is an backplane for Trove enclosures that accommodates a variety of Mercury/LenelS2 boards with Altronix Power Supply/Chargers and Sub-Assemblies.

  • Features
    • 16 Gauge galvanized steel backplane.
    • Includes mounting hardware.
      • Accommodates the following Mercury/LenelS2 controllers with or without Altronix power/accessories:
        • - Mercury: LP1501, MR62e, MR50, LP1502, LP4502, MR52, MR16IN, MR16OUT, LP2500, MUX8
        • - Altronix Power Supplies
        • - Altronix Sub-Assemblies
    • Simplifies board layout and wire management

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.

TAA Compliant

NDAA Compliant

BAA Compliant
Dimensions (approximate):
  • 16.75"W x 14.875"L x 0.3125"H (425.5 mm W x 377.8 mm L x 7.9 mm H).
Weights (approximate):
  • Product Weight: 6 Lbs. (2.721 kg).
  • Shipping Weight: 8 Lbs. (3.628 kg).
Configure Trove Print

Access controllers not included
