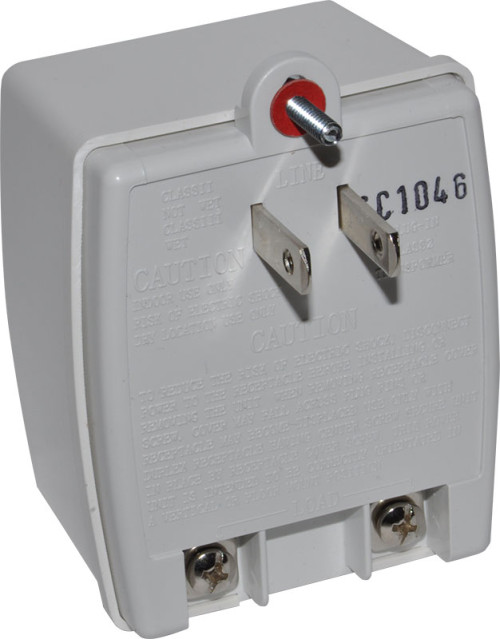

TP1220

Plugin Transformer, 12VAC @ 20VA

Altronix TP1220 transformer provides 12VAC with a total of 1.7A output current.

  • Input
    • 115VAC 50/60 Hz, 0.23A.
  • Output
    • 12VAC/20VA (1.7A) output.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr. (approx.): 10 BTU/Hr.
    • System AC input VA requirement: 26.45VA.
Dimensions (approximate):
  • 2.35"W x 2.6"L x 3.5"H (59.69 mm W x 66.04 mm L x 89.9 mm H).
Weights (approximate):
  • Product Weight: 0.85 Lbs. (0.386 kg).
  • Shipping Weight: 1.15 Lbs. (0.52 kg).
