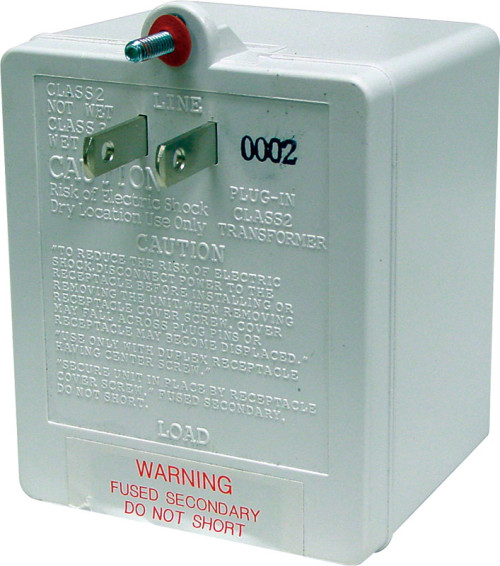

TP2450

Plugin Transformer, 24VAC @ 50VA

Altronix TP2450 transformer provides 24VAC with a total of 2A output current.

  • Input
    • 115VAC 50/60 Hz, 0.5A.
  • Output
    • 24VAC/50VA (2A) output.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • BTU/Hr. (approx.): 24 BTU/Hr.
    • Relative Humidity 85% +/- 5%
    • System AC input VA requirement: 57.5VA.
Dimensions (approximate):
  • 2.3"W x 2.6"L x 3.4"H (58.42 mm W x 66.04 mm L x 86.36 mm H).
Weights (approximate):
  • Product Weight: 1.25 Lbs. (0.57 kg).
  • Shipping Weight: 1.55 Lbs. (0.7 kg).
