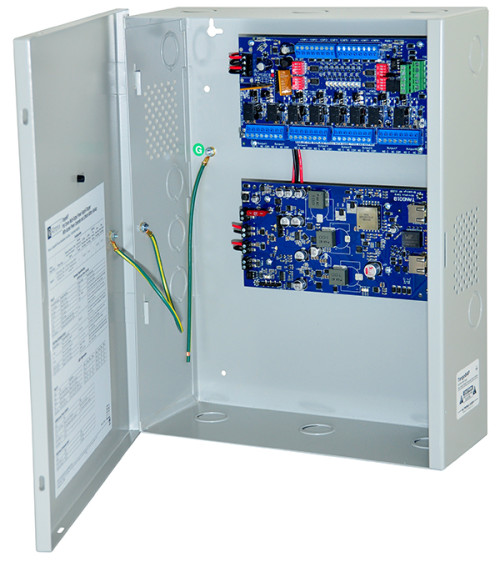

Tango8ACB

Tango1B PoE Driven Power Supply/Charger

Ethernet Input

• 802.3bt PoE up to 90W (or 802.3at up to 30W or 802.3af up to 15W)

Power Output (when using 802.3bt 90W)

• 12VDC up to 5.4A (65W) and/or 24VDC up to 2.7A (65W).
• Combined output not to exceed 65W.

• When charging batteries:

  • 12VDC up to 4.6A (55W) and/or 24VDC up to 2.3A (55W)
  • Combined output not to exceed 55W.

Ethernet Output

• Pass-through Ethernet Port (data only).

Battery Charging

• 12VDC battery charger for Lithium Iron Phosphate Battery (LiFePO₄ only).
• Unique technology allows for single battery to backup 12VDC and/or 24VDC systems.
• (Batteries are sold separately).

Supervision

• Loss of PoE Input.
• Battery Supervision.

Indicators (LED)

• Input: Indicates input voltage is present.
• Output: Indicates normal operating condition.
• PoE Type: PoE Class Indicator
• Supervision: PoE Fail or BAT Fail.

ACMS8CB Access Power Controller:

• Inputs

  • 12VDC and 24VDC from Tango1B, factory wired.
  • Current Consumption: 0.6A @ 12V, 0.3A @ 24V with all relays energized
  • Main Fuse Rating 15/32A.

• Trigger Inputs

  • Eight (8) individually controlled trigger inputs:
  • a) Normally open (NO) inputs.
  • b) Normally closed (NC) inputs.
  • c) Open collector sink inputs.
  • d) Wet Input (5VDC - 24VDC) with 10K resistor.
  • e) Any combination of the above.

• Outputs

  • Eight (8) PTC protected outputs rated @ 2A per output, Class 2 power-limited. Total output 16A max.
  • Do not exceed the individual power supply ratings.
  • Eight (8) selectable 12VDC or 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
  • a) Fail-Safe and/or Fail-Secure power outputs.
  • b) Form “C” Relays. 28VAC or VDC @ 2.5A Rated.
  • c) Auxiliary power outputs (unswitched).
  • d) Any combination of the above.
  • Any of the eight (8) power outputs are selectable for 12VDC or 24VDC.
  • Individual outputs may be set to OFF position for servicing.

Output Ratings

• Fuses are rated 2.5A each, PTCs are rated at 2A.

Fire Alarm Disconnect

• Supervised: Latching or non-latching, individually selectable for any or all of the eight (8) outputs.
• EOL: 10K Resistor.

Indicators (LED)

• Red LEDs: Outputs are triggered (relays energized).
• Blue LED: FACP disconnect is triggered.

• Individual voltage LEDs

  • Green: 12VDC
  • Red: 24VDC.

Environmental

• Temperature

  • Operating: 0° C to 49° C (32° F to 120° F).
  • Storage: - 20° C to 70° C ( - 4° F to 158° F).

• Relative Humidity

  • 85% +/- 5%.

• BTU/Hr. (approx.):

  • 54 BTU/Hr.
