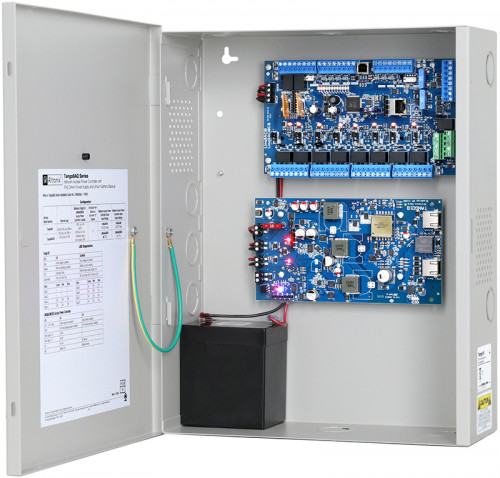

Tango8AQCB

Tango1B PoE Driven Power Supply/Charger

Ethernet Input

• 802.3bt PoE up to 90W (or 802.3at up to 30W or 802.3af up to 15W)

Power Output (when using 802.3bt 90W)

• 12VDC up to 5.4A (65W) and/or 24VDC up to 2.7A (65W).
• Combined output not to exceed 65W.

• When charging batteries:

  • 12VDC up to 4.6A (55W) and/or 24VDC up to 2.3A (55W)
  • Combined output not to exceed 55W.

Ethernet Output

• Pass-through Ethernet Port (data only).

Battery Charging

• Capacity: One (1) LiFePO₄ battery within enclosure ).
• Type: LiFePO₄ (lithium iron phosphate)
• Failover: Upon AC loss, instantaneous
• Unique technology allows for single battery to backup 12VDC and/or 24VDC systems
• (Batteries are sold separately).

Supervision

• Loss of PoE Input.
• Battery Supervision.

Indicators (LED)

• Input: Indicates input voltage is present.
• Output: Indicates normal operating condition.
• PoE Type: PoE Class Indicator
• Supervision: PoE Fail or BAT Fail.

LINQ8ACMCB Network Access Power Controller:

• Input

  • 12VDC and 24VDC from Tango1B, factory wired
  • Current Consumption: 0.6A @ 12V, 0.3A @ 24V with all relays energized
  • Input PTC: 9A.

• Outputs

  • PTC protected outputs rated @ 2A per output, Class 2 power-limited. Total output 16A max.
  • Do not exceed the individual power supply ratings
  • Any of the eight (8) PTC protected power outputs are selectable 12 or 24VDC
  • Individual outputs may be set to OFF position for servicing

• Output Ratings:

  • Output PTCs: 2.5A.
  • Total output current is determined by the power supply(ies), not to exceed a maximum of 10A for each input

Programming Features:

• Eight (8) Programmable Outputs:

  • - Fail-safe, fail-secure or auxiliary outputs
  • - Input controlled or manually controlled through software
  • - High (over) and low (under) voltage and current monitoring by output
  • - Multiple outputs may be programmed to be triggered by a single input
  • - Battery back-up by output

• Eight (8) Programmable Trigger Inputs:

  • - Normally open (NO), Normally closed (NC) or Open collector sink inputs
  • - Wet Input (5VDC - 24VDC) with 10k resistor
  • - Any combination of the above

• Other Programmable Trigger Inputs:

  • - Monitor power supply(ies) input for voltage and current limits (high/low)
  • - Input and output current calibration, Programmable timer events
  • - Programmable user levels, Enable or disable alerts by type
  • - Programmable alert reporting delay

• Indicators (LED)

  • Green AC LED: indicates AC trouble condition
  • Green BAT LED: indicates battery trouble condition
  • Green FACP LED: indicates FACP disconnect is triggered
  • Flashing Blue Heartbeat LED: indicates network connection
  • Individual OUT1 - OUT8 Red LEDs: indicate outputs are triggered
  • Individual Voltage LEDs: indicate 12VDC (Green) or 24VDC (Red)

Environmental

• Temperature

  • Operating: 0° C to 49° C (32° F to 120° F).
  • Storage: - 20° C to 70° C ( - 4° F to 158° F).

• Relative Humidity

  • 85% +/- 5%.

• BTU/Hr. (approx.):

  • 54 BTU/Hr.
