Trove1M1WP

Outdoor Altronix/Mercury Access and Power Integration Enclosure with Backplane

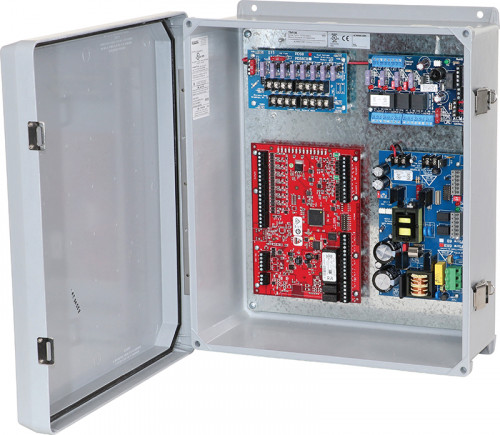

Altronix Trove1M1WP Access and Power Integration Solution is a NEMA 4/IP 66 Rated outdoor enclosure with TM1X backplane that lets you easily integrate Altronix power with Mercury access controllers and accessories. Trove simplifies board layout and wire management, reduces installation time and labor costs.
*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt

  • WP2 enclosure with TM1X Altronix/Mercury backplane
      • Backplane accommodates the following controllers with or without Altronix power/accessories:
        • - Mercury: LP1501, MR62e, MR50, LP1502, LP4502, MR52, MR16IN, MR16OUT, LP2500, MUX8
        • - Altronix Power Supplies
        • - Altronix Sub-Assemblies
        • Includes Altronix WP2 NEMA 4/IP 66 Rated outdoor enclosure and one (1) removable TM1X backplane
  • WP2 Enclosure
    • Hot compression molded, halogen free, self extinguishing fiberglass reinforced polyester.
    • Stainless steel continuous hinge and stainless steel padlockable latches.
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
Download File

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
WP2 1 NEMA 4/IP 66 Rated Power Supply/Battery Outdoor Enclosure, 17.53"H x 15.3"W x 6.67"D
TM1X 1 Trove1 Backplane for Altronix/Mercury
Enclosure:
  • NEMA 4/IP 66 Rated enclosure for outdoor use.
  • Accommodates up to two (2) 12VDC/7AH Batteries.
  • Dimensions 15.3"W x 17.53"H x 6.67"D (388.6 mm W x 445.3 mm H x 169.4 mm D).
Weights (approximate):
  • Product Weight: 13 Lbs. (5.9 kg).
  • Shipping Weight: 14.5 Lbs. (6.58 kg).
Configure Trove Print

Boards not included

*Batteries sold separately
Documentation A&E Specs
Lifetime Warranty Locate a Distributor
