Trove2M2R

Altronix Access and Power Integration Rack Drawer with Mercury Backplane, Trove2R Deep Rack Series

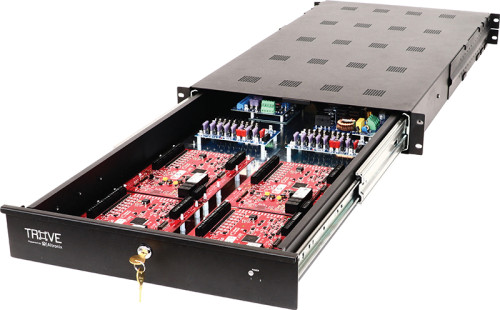

Altronix Trove2M2R consists of a high-capacity rack enclosure with removable backplane. This unit easily combines Altronix power/accessories with various combinations of Mercury* boards in a streamlined package. Trove simplifies board layout and wire management, reducing installation time and labor costs.
*Also compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt

  • Trove2R rack mount enclosure with TM2R Altronix backplane.
      • Accommodates the following Mercury controllers with Altronix power/accessories:
        • - One (1) LP2500, MUX8 or Genetec Cloudlink.
        • - Up to four (4) LP1502, LP4502, MR52, MR16IN, MR16OUT.
        • - Altronix Power Supply/Charger.
        • - Altronix Sub-Assemblies.
        • Includes Altronix Trove2R Rack Enclosure and one (1) removable TM2R backplane.
  • Trove2R Enclosure
    • Power status LED for use where power and access control boards share the same enclosure.
    • Simplifies board layout and wire management.
    • Convenient knockout configuration:
    • - Four (4) double knockouts - 3/4” Conduit and 1” Conduit.
    • - Two (2) double knockouts - 1/2” Conduit and 3/4” Conduit.
    • 2U drawer on extendable rails.
    • Included Z Bracket facilitates ease of wiring.
    • Includes cam lock, tamper switch, IEC320 connector with line cord and mounting hardware.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove2R 1 Rack Mount Access and Power Integration Enclosure, Requires compatible Trove2R Series Backplane
TM2R 1 Trove2R Backplane for Altronix & Mercury
Enclosure:
  • Trove Rack Mount Enclosure
  • Dimensions 19"W x 3.375"H x 33.25"D (482.6 mm W x 82.8 mm H x 844.6 mm D).
Weights (approximate):
  • Product Weight: 35.5 Lbs. (16.1 kg).
  • Shipping Weight: 40.5 Lbs. (18.37 kg).
Configure Trove Print

Boards not included
