Trove2XXM2

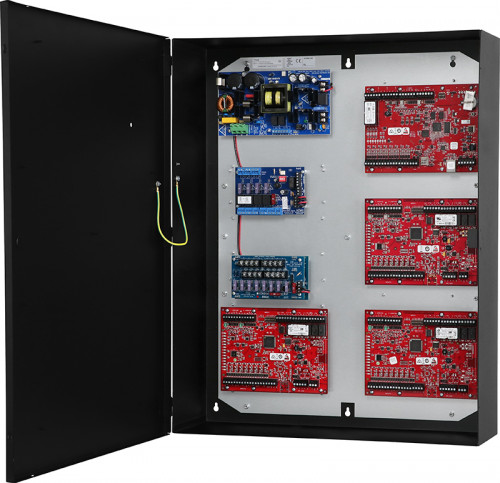

Trove2XX Access and Power Integration Enclosure with Altronix & Mercury/LenelS2 backplane (TM2)

Altronix Trove2XXM2 enclosure and TM2 backplane let you easily integrate Altronix power with Mercury access controllers and accessories. The enclosure has no knockouts or venting holes for use in applications such as federal and military installations. Trove simplifies board layout and wire management, reduces installation time and labor costs.

*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2

  • Trove2XXM2 enclosure with TM2 Altronix/Mercury/LenelS2 backplane
      • Backplane accommodates a combination of Mercury/LenelS2 controllers with or without Altronix power/accessories:
        • - Mercury/LenelS2: LP1502, MR52, MR16IN, MR16OUT, LP2500, MUX8, MR51e, LP1501, MR50, and Genetec Synergis Cloud Link
        • - Altronix Power Supplies
        • - Altronix Sub-Assemblies
        • Includes Altronix Trove2XX Enclosure and one (1) removable TM2 backplane
  • Features
    • Simplifies board layout and wire management
    • No knockouts or venting holes
    • 16 Gauge powder coated steel
    • Includes cam lock, tamper switch and mounting hardware

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.

TAA Compliant

NDAA Compliant

BAA Compliant
Name Qty Description Agency Listings
Trove2XX 1 Access and Power Integration Enclosure (no knockouts/venting holes), Requires compatible Trove2 Series Backplane
TM2 1 Trove2 Backplane for Altronix & Mercury
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • No knockouts or venting holes.
Weights (approximate):
  • Product Weight: 37.1 Lbs. (16.83 kg).
  • Shipping Weight: 40.85 Lbs. (18.53 kg).
Configure Trove Print

Boards not included

*Batteries sold separately
