Trove3IR3

Altronix/Inner Range Access and Power Integration Enclosure with Backplane, Trove 3 Series

Altronix Trove™ enclosures and backplanes let you easily integrate Altronix power with Inner Range access controllers and accessories. Trove simplifies board layout and wire management, reduces installation time and labor costs.

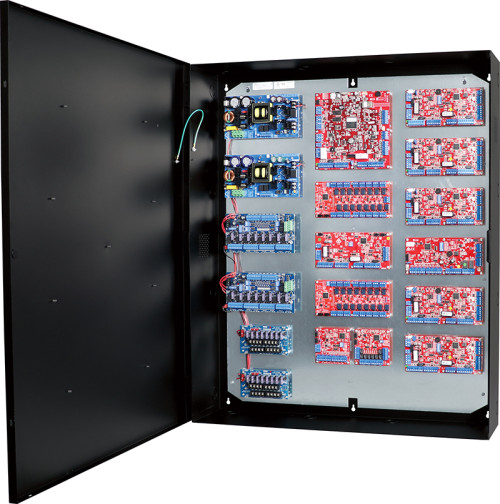

  • Trove3 enclosure with TIR3 Altronix/Inner Range backplane
      • Backplane accommodates a combination of Inner Range controllers with or without Altronix accessories:
        • Integriti Security Controller, Integriti Access Controller, Integriti Intelligent LAN Access modules, Integriti Standard LAN Access modules, Integriti 8-32 Zone LAN I/O Expander Modules, Standard LAN Access Modules, 8 Zone Expansion Device, Unibus 8 Relay Expander modules, Unibus 8 Relay Auxiliary Expander.
        • - Altronix Power Supplies.
        • - Altronix Sub-Assemblies.
        • Includes Altronix Trove3 Enclosure and one (1) removable TIR3 backplane
  • Trove3 Enclosure
    • Simplifies board layout and wire management
    • Convenient knockout configuration:
    • - One (1) single knockout 2.415” (2” Conduit).
    • - Two (2) double knockouts 1.948” (1.5” Conduit) / 1.701” (1.25” Conduit).
    • - Thirteen (13) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit).
    • 16 Gauge powder coated steel
    • Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
Download File

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove3 1 Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane
TIR3 1 Trove3 Backplane for Altronix/Inner Range
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 80 Lbs. (36.29 kg).
  • Shipping Weight: 92 Lbs. (41.73 kg).
Configure Trove Print

Boards not included

*Batteries sold separately
