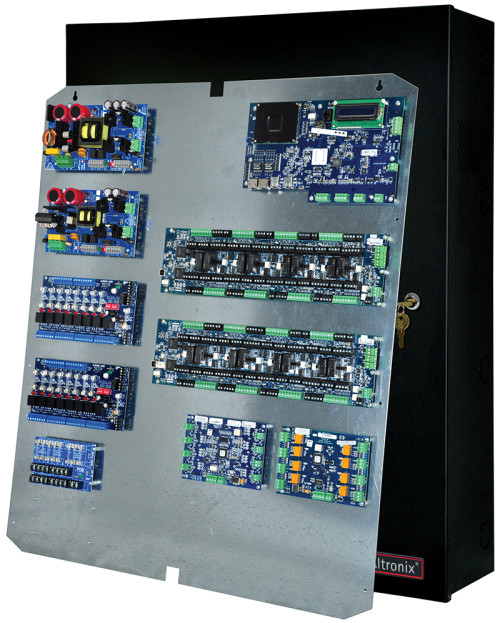

Trove3SH3

Altronix/Software House Access and Power Integration Enclosure with Backplane, Trove3 Series

Trove3SH3 accommodates various combinations of Software House boards with or without Altronix power supplies and accessories for access systems.

  • Trove3 enclosure with TSH3 Altronix/Software House backplane
      • Backplane accommodates a combination of Software House iStar Ultra series access controllers with or without Altronix accessories:
        • - Software House - iStar Ultra GCM and iStar Ultra ACM boards or iSTAR Pro GCM and iSTAR ACM SE/PRO ACM boards, as well as I8, R8, and I8-CSI boards
        • - Altronix Power Supplies
        • - Altronix Sub-Assemblies
        • Includes Altronix Trove3 Enclosure and one (1) removable TSH3 backplane
  • Trove3 Enclosure
    • 16 AWG powder coated steel enclosure
    • Simplifies board layout and wire management
    • Convenient knockout configuration:
    • - One (1) single knockout 2.415” (2” Conduit).
    • - One (1) double knockout 1.948” (1.5” Conduit) / 1.701” (1.25” Conduit).
    • - Sixteen (16) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit).
    • Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
Download File

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove3 1 Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane
TSH3 1 Trove3 Backplane for Altronix/Software House
Dimensions (approximate):
  • 36.12"W x 30.125"L x 7.06"H (917.5 mm W x 768.1 mm L x 179.3 mm H).
Weights (approximate):
  • Product Weight: 80 Lbs. (36.29 kg).
  • Shipping Weight: 92 Lbs. (41.73 kg).
Configure Trove Print

Boards not included

*Batteries sold separately
Documentation A&E Specs
Lifetime Warranty Locate a Distributor
