Trove3SS3

Altronix/Lenel-S2 Access and Power Integration Enclosure with Backplane, Trove3 Series

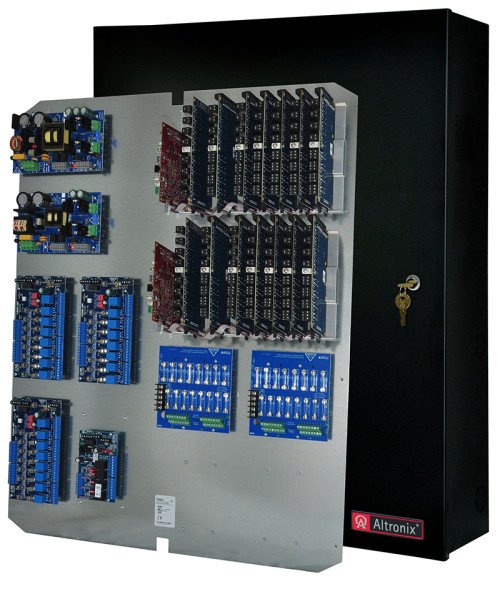

Altronix Trove3SS3 consists of a high-capacity enclosure with removable backplane. This unit easily combines Altronix power/accessories with various combinations of Lenel-S2 boards in a streamlined package. Trove simplifies board layout and wire management, reducing installation time and labor costs.

  • Trove3 enclosure with TSS3 Altronix/Lenel-S2 backplane
      • Backplane accommodates a combination of Lenel-S2 access controllers with or without Altronix accessories:
        • - S2-INST
        • - Altronix Power Supplies
        • - Altronix Sub-Assemblies
        • Includes Altronix Trove3 Enclosure and one (1) removable TSS3 backplane
  • Trove3 Enclosure
    • 16 AWG powder coated steel enclosure
    • Simplifies board layout and wire management
    • Convenient knockout configuration:
    • - One (1) single knockout 2.415” (2” Conduit).
    • - One (1) double knockout 1.948” (1.5” Conduit) / 1.701” (1.25” Conduit).
    • - Sixteen (16) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit).
    • Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
Download File

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove3 1 Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane
TSS3 1 Trove3 Backplane for Altronix/Lenel-S2
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 20 Lbs. (9.1 kg).
  • Shipping Weight: 25 Lbs. (11.74 kg).
Configure Trove Print

Boards not included

*Batteries sold separately
