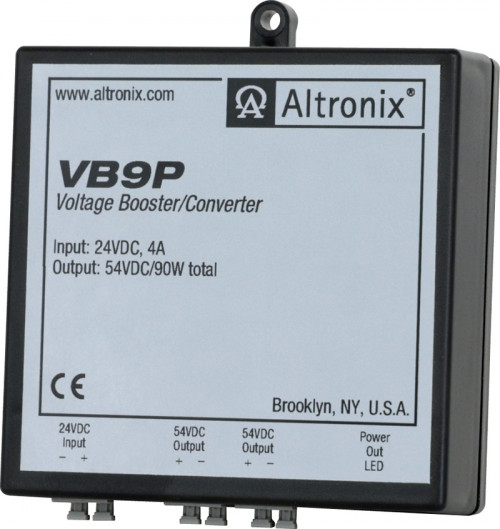

VB9P

Voltage Booster, Converts 24VDC into 54VDC @ 90W, 2 Outputs

Altronix VB9P converts a 24VDC input into 54VDC/90W output(s), intended to power PoE related products such midspans, receivers, adapters, and accessories. VB9P provides two sets of output terminals to facilitate connection for up to two devices.

  • Input
    • Voltage: 24VDC @ 4A
  • Output
    • Voltage: Two (2) 54VDC outputs with up to 90W combined total power
    • Other: Built-in overload protection
    • Electronically filtered and regulated outputs
  • Features
    • Compact insulated housing.
  • Indicators (LED)
    • Output LED
  • Temperature
    • Operating: 0ºC to 70ºC (32ºF to 158ºF).
    • Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
    • Relative Humidity: 85% +/- 5%.
    • Operating Altitude: – 304.8 to 3,048m
    • BTU/Hr. (approx.): 15 BTU/Hr.

CE Compliant
Name Description
DCL2 DIN Rail Mounting Clip
Enclosure:
  • Modular plastic case. VB6
  • Dimensions 3.5"W x 1"H x 3.5"D (88.89 mm W x 25.4 mm H x 88.89 mm D).
Weights (approximate):
  • Product Weight: 0.25 Lbs. (0.11 kg).
  • Shipping Weight: 0.3 Lbs. (0.14 kg).
