VertiLine48MDV

16 PTC Protected Outputs Power Supply, 56VDC @ 6.5A, 220VAC, 2U

This product replaces VertiLine48MV

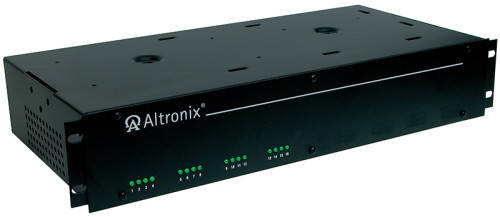

Altronix Vertiline48MDV Rack Mount DC Power Supply provides sixteen (16) filtered and electronically regulated 56VDC power outputs in a space saving 2U EIA 19” rack mount chassis.

  • Input
    • Voltage: 220VAC, 50/60Hz, 3A.
  • Output
    • Voltage: 56VDC.
    • Current: 6.5A max. total supply current.
    • PTC: Individual outputs’ PTCs rated @ 2.5A
    • Other: Short circuit and thermal overload protection. Filtered and regulated.
  • Indicators (LED)
    • Master: Illuminated master power disconnect circuit breaker with manual reset.
    • Output: Sixteen (16) individual LEDs.
  • Temperature
    • Operating: 0º C to 49º C (32º F to 120º F).
    • Storage: - 20º C to 70º C ( - 4º F to 158º F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 186 BTU/Hr.
Enclosure:
  • Modular 2U standard EIA 19" rack mount chassis.
  • Dimensions 19.12"W x 3.25"H x 8.5"D (486 mm W x 83 mm H x 216 mm D).
  • Allow 1/2U space on top and bottom of the unit for ventilation.
Weights (approximate):
  • Product Weight: 13.75 Lbs. (6.24 kg).
  • Shipping Weight: 14.75 Lbs. (6.69 kg).
