WayPoint30A8U

CCTV Power Supply, Outdoor, 8 Fused Outputs, 24/28VAC @ 12.5A, 115/220VAC, WP3 Enclosure

This product replaces WayPoint30A4U and WPTV248300220

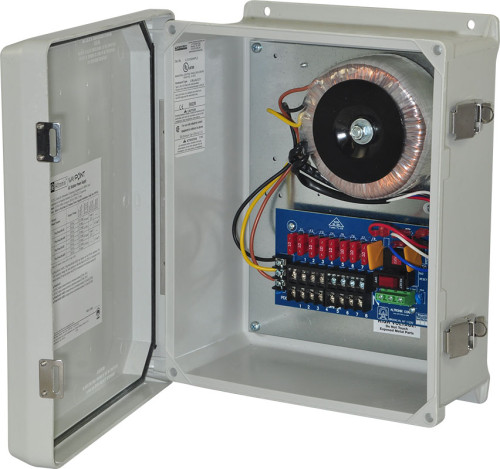

Altronix WayPoint30A8U Outdoor Power Supply provides 24VAC and/or 28VAC distributed via eight (8) fuse protected outputs for powering CCTV Cameras, heaters, and other video accessories.

  • Input
    • Input: 115VAC, 50/60Hz, 3.0A or 230VAC, 50/60Hz, 1.5A.
  • Output
      • Output options:
        • a. 24VAC @ 12.5A max.
        • b. 28VAC @ 10A max.
    • Output fuses rated @ 5A/32V.
  • Visual Indicators
    • Individual power output LED indicators.
    • Illuminated master power switch.
  • Temperature
      • Operating:
        • 24VAC @ 12.5A output: - 40° C to 60° C ( - 40° F to 140° F);
        • 28VAC @ 10A output: - 40° C to 70° C ( - 40° F to 158° F).
    • Storage: - 40° C to 75° C ( - 40° F to 167° F).
    • Relative Humidity: 85% +/- 5%
    • BTU/Hr. (approx.): 154 BTU/Hr.
    • System AC input VA requirement: 345VA.
  • Operating Altitude
    • - 304.8 to 2000m ( - 1000 to 6,561.679 ft.).
UL Listed For:
Information Technology Equipment (UL60950-1)
View Certificate
Information Technology Equipment (UL60950-22)
View Certificate
cUL Listed For:
Information Technology Equipment
View Certificate

CE Compliant
Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Weights (approximate):
  • Product Weight: 15.76 Lbs. (7.15 kg).
  • Shipping Weight: 17.1 Lbs. (7.75 kg).
