eBridge1ST

EoC Single Port Small Transceiver, 25Mbps, Passes PoE/PoE+ from Receiver, Requires Compatible Receiver

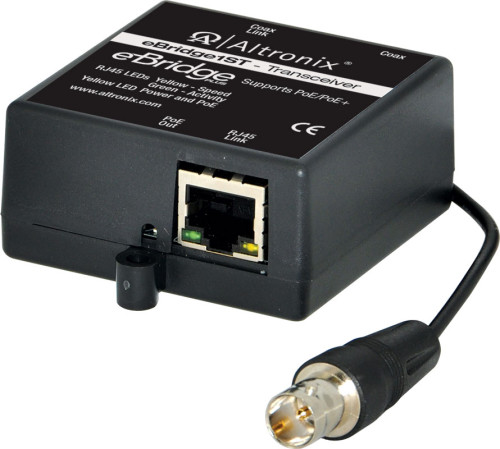

Altronix eBridge1ST EoC hardened transceiver transmits data at 25Mbps, Full Duplex over Coax cable to a paired eBridge receiver and provides power in a PoE/PoE+ compliant format to an enabled device/camera. The eBridge receiver is available in various options and is powered by an external midspan or endspan. The receiver passes PoE/PoE+ power over the same coax cable to the eBridge1ST transceiver, which, in turn, passes this power to an enabled IP camera/device. These plug and play units facilitate a cost-effective, simple way to replace legacy analog products with new IP devices over existing coax up to 500m.

  • Input
    • PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) from eBridge receivers.
  • Compatible Receivers
    • eBridge1PCRM, eBridge4PCRM, eBridge8PCRM, eBridge16PCRM, eBridge1PCR, eBridge1PCRX, eBridge4PCRX, eBridge8PCRX, eBridge16PCRX.
    • eBridge8E
    • Visit www.altronix.com for the latest compatibility list.
  • Ethernet
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5.
    • Distance: up to 500m.
    • Speed: 10/100BaseT, auto negotiation. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) Delivered to camera by eBridge1ST. Power provided by eBridge receiver to eBridge1ST by PoE protocol.*
  • Coax Link
    • Distance: Coax 500m for power delivery.
    • Throughput is rated to pass 25Mbps of data at distances up to 500m.
    • Connectivity: BNC, RG-59/U or similar.
  • LED Indicators
    • Green - PoE ON (by respective RJ45 jack).
    • Yellow and Green LED (RJ45) IP Link status, 10/100Base-T/active.
    • Blue: Coax Link is active.
  • Environmental
      • Operating Temperature:
        • For 15W: - 40° C to 75° C (-40° F to 167° F).
        • For 30W: - 40° C to 65° C (-40° F to 149° F).
      • Storage Temperature:
        • - 40° C to 75° C ( - 40° F to 167° F).
        • Humidity: 20 to 85%, non-condensing.
  • Operating Altitude
    • - 304.8 to 2,000m ( - 1000 to 6,561.679 ft.).
  • Functions
    • Auto detection and protection of legacy non-PoE cameras/devices.
UL Listed For:
Information Technology Equipment (UL60950-1)
cUL Listed For:
Information Technology Equipment

CE Compliant
Enclosure:
  • Modular plastic case.
  • Dimensions 2.27"W x 1.12"H x 2.64"D (57.66 mm W x 28.44 mm H x 67.18 mm D).
Weights (approximate):
  • Product Weight: 0.22 Lbs. (0.1 kg).
  • Shipping Weight: 0.4 Lbs. (0.18 kg).
