eFlow104NK8D

Dual Output Power Supply/Charger, 8 PTC protected Auxiliary Class 2 power-limited outputs, 12VDC up to 6A and/or 24VDC up to 10A (240W total power),120VAC, BC400 Enclosure

Ordering # EFLOW104NK8D Kit Contents: EFLOW104N with VR6 and PDS8CB UL Listed Sub-assemblies

Altronix eFlow104NK8D sub-assembly kit converts a 120VAC 60Hz input into eight (8) PTC protected powerlimited 12VDC or 24VDC outputs with a total of 10A max. Unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Dual input design allows power to be steered from two (2) factory installed independent low voltage 12 or 24VDC Altronix power supplies to eight (8) independently controlled PTC protected outputs.

  • eFlow104NB Power Supply/Charger
      • Input
        • Voltage: 120VAC, 60Hz, 4.5A max.
        • Input Fuse: 6.3A / 250V.
      • Outputs
        • Voltage: 24VDC @ 10A.
        • Auxiliary: 1A (unswitched).
        • Protection: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Type: Sealed lead acid or gel type.
    • Fuse Rating: 15A @ 32VDC.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Fire Alarm Disconnect
    • Supervised: Latching or non-latching.
    • EOL: 10K Resistor.
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • Indicators LED
    • AC Input: 120VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected.
  • VR6 Voltage Regulator
      • Input
        • Voltage: 24VDC from eFlow104NB.
      • Output
        • Voltage: 12VDC.
        • Current: 6A continuous.
        • Other: Surge suppression.
      • Indicators LED
        • Input: 24VDC is present.
        • Output: Powered.
  • PDS8CB Dual Input Power Distribution Module
      • Input
        • Voltage: 24VDC from eFlow104NB and 12VDC or 5VDC from VR6.
        • Input PTCs: 9A.
      • Outputs
        • Voltage: 12 or 24VDC individually selectable.
        • Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
        • Output PTCs: 2.5A.
      • Indicators (LED)
        • Out1 - Out8: Bi-colored LEDs indicate 12 or 24VDC.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 123 BTU/Hr.
UL Listed For:
Access Control System Units (UL294)
View Certificate
Power Supplies for use with Burglar Alarm Systems (UL603)
View Certificate
Power Supplies for Fire Protective Signaling Systems (UL1481)
View Certificate
cUL Listed For:
ULC-S318-96 - Power Supplies for Burglar Alarm Systems. Also suitable for Access Control.
View Certificate

CE Compliant

Components of this kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings

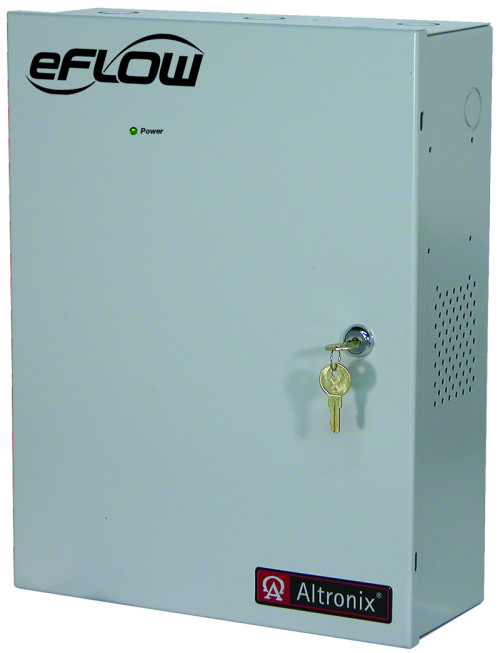

BC400 1 Enclosure, 15.5"H x 12"W x 4.5"D, Grey, 19 Gauge, Indoor
eFlow104NB 1 Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
PDS8CB 1 Dual Input Power Distribution Module, 8 PTC Outputs
VR6 1 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 12"W x 15.5"H x 4.5"D (304.8 mm W x 393.7 mm H x 114.3 mm D).
  • 1.125" and 1.375" combination knockouts.
Weights (approximate):
  • Product Weight: 9.4 Lbs. (4.26 kg).
  • Shipping Weight: 10.5 Lbs. (4.76 kg).
