eFlow15URLB

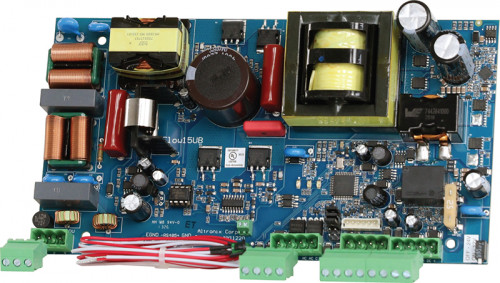

Auto-Ranging Sub-Assembly Power Supply Charger, Single Output, 12VDC @ 14A or 24VDC @ 10A, Board with LED Cable Assembly

Ordering# eFlow15URLB Kit Contents: eFlow15UB with LED Cable Assembly

Altronix eFlow15URLB power supply/charger converts a 100-256VAC, 50/60Hz input into a single 12VDC or 24VDC output. It also offers a suite of features that includes an independent charging circuit, fire alarm disconnect, overvoltage protection, true automatic weekly battery load testing feature and low power disconnect which prevents deep discharge of stand-by batteries. eFlow15URLB also charges SLA or LiFePO4 batteries. Network communication is provided via Altronix LINQ2 interface. Includes LED cable assembly and LED lens.

  • Input
    • Voltage: Auto-ranging 100-265VAC, 50/60Hz, 2.5A
    • Removable AC terminal block for maintenance and servicing
    • Input fuse is rated: 5A/250V
  • Output
    • Voltage: Switch selectable 12VDC or 24VDC
    • Current: 10A continuous max at 24VDC / 14A continuous max at 12VDC
    • Other: Overvoltage & short circuit protection
    • Filtered and electronically regulated
  • Battery Charging
    • Voltage: Independent 24VDC charging circuit will backup both the 12VDC and 24VDC output
    • Charging Current: 1A
    • Type: LiFePO4 (Lithium Iron Phosphate), Sealed lead acid (or gel type). Instantaneous automatic switch over to stand-by battery when AC fails. Zero voltage drop when switched over to battery backup
    • True Automatic Weekly Battery Load testing feature
    • Battery Fuse: 20A/32V
    • (Batteries are sold separately)
  • Fire Alarm Disconnect
    • Supervised: Latching or non latching
    • EOL: 10K Resistor
  • Network Communication
    • LINQ2 Interface: Remote supervision, control and monitoring over LAN/WAN
  • Indicators (LED)
    • System of diagnostic LEDs that constantly monitor and report on board’s health and functioning
  • Supervision
    • AC Fail: Form “A” normally closed contacts
    • Battery Fail and Presence: Form “A” normally closed contacts
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75%. Prevents deep battery discharge
    • Brownout detection
    • Output short circuit protection with temporary shutdown
    • Low charging voltage detection
    • Critical component failure shutdown
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 20 to 85%, non-condensing
    • BTU/Hr. (approx.): 123 BTU/Hr.
UL Listed For:
Access Control System Units (UL294)
View Certificate

TAA Compliant

NDAA Compliant

BAA Compliant
Dimensions (approximate):
  • 4.5"W x 8.25"L x 1.5"H (114.3 mm W x 209.5 mm L x 38.1 mm H).
Weights (approximate):
  • Product Weight: 1.1 Lbs. (0.5 kg).
  • Shipping Weight: 1.25 Lbs. (0.57 kg).
