WayPoint562

High Current Outdoor Power Supply/Charger

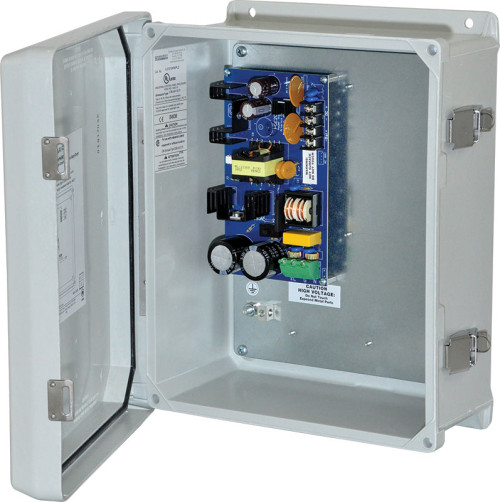

Altronix WayPoint562 provides 120W for NetWay Spectrum switches with 1Gb SFP ports. It converts 115VAC, 60Hz or 230VAC, 50Hz input into a 56VDC at 2.2A of continuous supply current (see specifications). It also features a built-in charger for sealed lead acid or gel type batteries. Lightweight molded fiberglass reinforced polyester enclosure is NEMA 4/4X, IP66-11 Rated for outdoor use. It features lockable stainless steel latches and integral flanges to simplify wall or pole mounting.

  • Input
    • 115VAC, 60 Hz, 2.5A or 230VAC, 50Hz, 1.3A.
  • Output
    • 56VDC/120W output.
    • 2.2A continuous supply current.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Electrical
    • Operating Ambient Temperature: - 20ºC to 50ºC.
    • System AC input VA requirement: 300VA.
  • Battery Charging
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
    • Separate ventilated enclosure is required
  • Temperature
      • Operating Temperature:
        • 60W: -40ºC to 75ºC (-40ºF to 167ºF);
        • 75W: -40ºC to 70ºC (-40ºF to 158ºF);
        • 100W: -40ºC to 55ºC (-40ºF to 131ºF),
        • 120W: -40ºC to 45ºC (-40ºF to 113ºF).
      • Storage Temperature:
        • -40ºC to 70ºC (-40ºF to 158ºF).
        • Relative humidity: 85%, +/- 5%.
  • BTU/Hr. (approx.):
    • 72 BTU/Hr.

CE Compliant
Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Weights (approximate):
  • Product Weight: 8.5 Lbs. (3.9 kg).
  • Shipping Weight: 9.7 Lbs. (4.4 kg).
