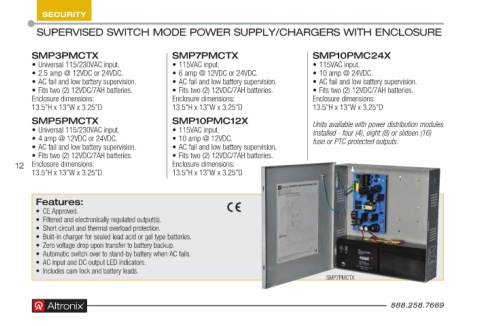

Page 12 - Altronix Product Guide

SECURITY
SUPERVISED SWITCH MODE POWER SUPPLY/CHARGERS WITH ENCLOSURE

SMP3PMCTX SMP7PMCTX SMP10PMC24X
• Universal 115/230VAC input . • 115VAC input . • 115VAC input .
• 2 .5 amp @ 12VDC or 24VDC . • 6 amp @ 12VDC or 24VDC . • 10 amp @ 24VDC .
• AC fail and low battery supervision . • AC fail and low battery supervision . • AC fail and low battery supervision .
• Fits two (2) 12VDC/7AH batteries . • Fits two (2) 12VDC/7AH batteries . • Fits two (2) 12VDC/7AH batteries .
Enclosure dimensions: Enclosure dimensions: Enclosure dimensions:
13 .5”H x 13”W x 3 .25”D 13 .5”H x 13”W x 3 .25”D 13 .5”H x 13”W x 3 .25”D
SMP5PMCTX SMP10PMC12X Units available with power distribution modules
• Universal 115/230VAC input . • 115VAC input . installed - four (4), eight (8) or sixteen (16)
• 4 amp @ 12VDC or 24VDC . • 10 amp @ 12VDC . fuse or PTC protected outputs.
• AC fail and low battery supervision . • AC fail and low battery supervision .
• Fits two (2) 12VDC/7AH batteries . • Fits two (2) 12VDC/7AH batteries .
12 Enclosure dimensions: Enclosure dimensions:
13 .5”H x 13”W x 3 .25”D 13 .5”H x 13”W x 3 .25”D

Features:
• CE Approved .
• Filtered and electronically regulated output(s) .
• Short circuit and thermal overload protection .
• Built-in charger for sealed lead acid or gel type batter ies .
• Zero voltage drop upon transfer to battery backup .
• Automatic switch over to stand-by battery when AC fails .
• AC input and DC output LED indicators .
• Includes cam lock and battery leads .
SMP7PMCTX

888.258.7669
®
