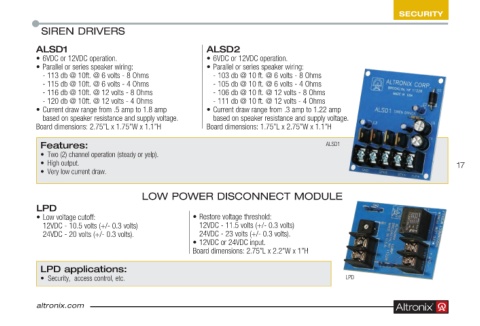

P. 17

SECURITY
         SIREN DRIVERS
        ALSD1                             ALSD2
        •  6VDC or 12VDC operation .      • 6VDC or 12VDC operation .
        • Parallel or series speaker wiring:  • Parallel or series speaker wiring:
          - 113 db @ 10ft . @ 6 volts - 8 Ohms    - 103 db @ 10 ft . @ 6 volts - 8 Ohms
          - 115 db @ 10ft . @ 6 volts - 4 Ohms    - 105 db @ 10 ft . @ 6 volts - 4 Ohms
          - 116 db @ 10ft . @ 12 volts - 8 Ohms    - 106 db @ 10 ft . @ 12 volts - 8 Ohms
          - 120 db @ 10ft . @ 12 volts - 4 Ohms    - 111 db @ 10 ft . @ 12 volts - 4 Ohms
        • Current draw range from  .5 amp to 1 .8 amp  • Current draw range from  .3 amp to 1 .22 amp
          based on speaker resistance and supply voltage .    based on speaker resistance and supply voltage .
        Board dimensions: 2 .75”L x 1 .75”W x 1 .1”H  Board dimensions: 1 .75”L x 2 .75”W x 1 .1”H
         Features:                                                ALSD1
         • Two (2) channel operation (steady or yelp) .
         • High output .                                                                    17
         • Very low current draw .

                             LOW POWER DISCONNECT MODULE
        LPD
        • Low voltage cutoff:          • Restore voltage threshold:
          12VDC - 10 .5 volts (+/- 0 .3 volts)    12VDC - 11 .5 volts (+/- 0 .3 volts)
          24VDC - 20 volts (+/- 0 .3 volts) .    24VDC - 23 volts (+/- 0 .3 volts) .
                                       • 12VDC or 24VDC input .
                                       Board dimensions: 2 .75”L x 2 .2”W x 1”H
         LPD applications:
         •  Security,  access control, etc .                          LPD
