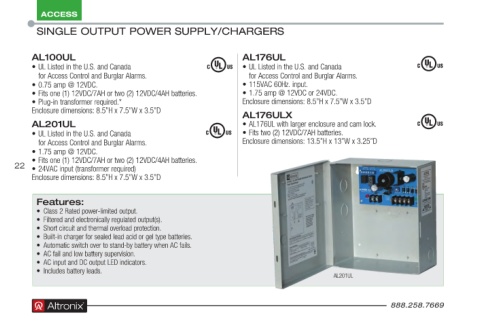

P. 22

ACCESS
        SINGLE OUTPUT POWER SUPPLY/CHARGERS

       AL100UL                                   AL176UL
       • UL Listed in the U .S . and Canada      • UL Listed in the U .S . and Canada
         for Access Control and Burglar Alarms .    for Access Control and Burglar Alarms .
       • 0 .75 amp @ 12VDC .                     • 115VAC 60Hz . input .
       • Fits one (1) 12VDC/7AH or two (2) 12VDC/4AH batteries .  • 1 .75 amp @ 12VDC or 24VDC .
       • Plug-in transformer required .*         Enclosure dimensions: 8 .5”H x 7 .5”W x 3 .5”D
       Enclosure dimensions: 8 .5”H x 7 .5”W x 3 .5”D
                                                 AL176ULX
       AL201UL                                   • AL176UL with larger enclosure and cam lock .
       • UL Listed in the U .S . and Canada      • Fits two (2) 12VDC/7AH batteries .
         for Access Control and Burglar Alarms .  Enclosure dimensions: 13 .5”H x 13”W x 3 .25”D
       • 1 .75 amp @ 12VDC .
       • Fits one (1) 12VDC/7AH or two (2) 12VDC/4AH batteries .
    22  • 24VAC input (transformer required)
       Enclosure dimensions: 8 .5”H x 7 .5”W x 3 .5”D

        Features:
        •  Class 2 Rated power-limited output .
        •  Filtered and electronically regulated output(s) .
        •  Short circuit and thermal overload protection .
        •  Built-in charger for sealed lead acid or gel type batteries .
        •  Automatic switch over to stand-by battery when AC fails .
        •  AC fail and low battery supervision .
        •  AC input and DC output LED indicators .
        •  Includes battery leads .
                                                             AL201UL

                                                                               888.258.7669
                 ®
