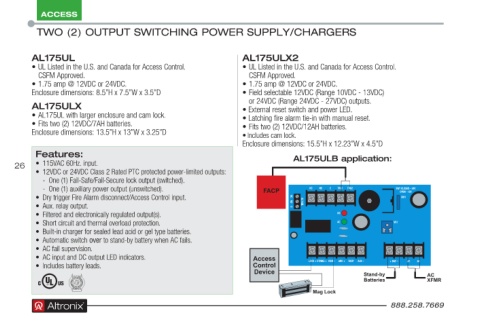

Page 26 - Altronix Product Guide

ACCESS
TWO (2) OUTPUT SWITCHING POWER SUPPLY/CHARGERS

AL175UL AL175ULX2
• UL Listed in the U .S . and Canada for Access Control . • UL Listed in the U .S . and Canada for Access Control .
CSFM Approved . CSFM Approved .
• 1 .75 amp @ 12VDC or 24VDC . • 1 .75 amp @ 12VDC or 24VDC .
Enclosure dimensions: 8 .5”H x 7 .5”W x 3 .5”D • Field selectable 12VDC (Range 10VDC - 13VDC)
or 24VDC (Range 24VDC - 27VDC) outputs .
AL175ULX • External reset switch and power LED .
• AL175UL with larger enclosure and cam lock . • Latching fire alarm tie-in with manual reset .
• Fits two (2) 12VDC/7AH batteries . • Fits two (2) 12VDC/12AH batteries .
Enclosure dimensions: 13 .5”H x 13”W x 3 .25”D • Includes cam lock .
Enclosure dimensions: 15 .5”H x 12 .23”W x 4 .5”D
Features: AL175ULB application:
26 • 115VAC 60Hz . input .
• 12VDC or 24VDC Class 2 Rated PTC protected power-limited outputs:
- One (1) Fail-Safe/Fail-Secure lock output (switched) .
- One (1) auxiliary power output (unswitched) . NC NO C TRG1 TRG2 SW1 CLOSED - 24V
OPEN - 12V
• Dry trigger Fire Alarm disconnect/Access Control input . NC NO SW1
• Aux . relay output . C AC FAIL
• Filtered and electronically regulated output(s) . DC
• Short circuit and thermal overload protection . AC VR1
• Built-in charger for sealed lead acid or gel type batter ies .
• Automatic switch over to stand-by battery when AC fails .
• AC fail supervision .
• AC input and DC output LED indicators . LOCK + STRIKE + COM -- AUX + FACP AUX --
• Includes battery leads . + BAT -- AC AC

888.258.7669
®
