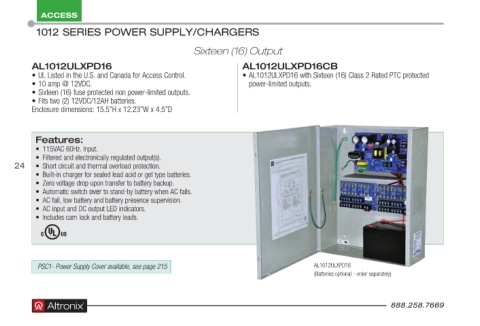

Page 24 - Altronix Product Guide
P. 24

ACCESS
        1012 SERIES POWER SUPPLY/CHARGERS

                                       Sixteen (16) Output
       AL1  012ULXPD16                           AL1  012ULXPD16CB
       • UL Listed in the U .S . and Canada for Access Control .  • AL1012ULXPD16 with Sixteen (16) Class 2 Rated PTC protected
       • 10 amp @ 12VDC .                          power-limited outputs .
       • Sixteen (16) fuse protected non power-limited outputs .
       • Fits two (2) 12VDC/12AH batteries .
       Enclosure dimensions: 15 .5”H x 12 .23”W x 4 .5”D


        Features:
        •  115VAC 60Hz . input .
        •  Filtered and electronically regulated output(s) .
    24  •  Short circuit and thermal overload protection .
        •  Built-in charger for sealed lead acid or gel type batteries .
        •  Zero voltage drop upon transfer to battery backup .
        •  Automatic switch over to stand-by battery when AC fails .
        •  AC fail, low battery and battery presence supervision .
        •  AC input and DC output LED indicators .
        •  Includes cam lock and battery leads .





        PSC1- Power Supply Cover available, see page 215       AL1012ULXPD16
                                                               (Batteries optional - order separately)
