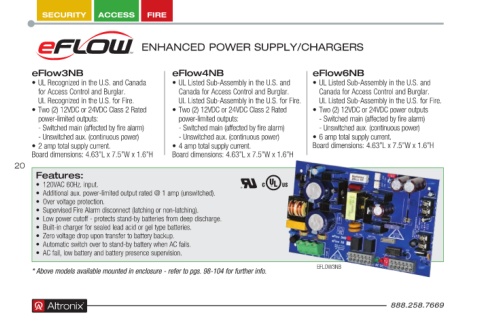

P. 20

SECURITY    ACCESS   FIRE


                             ENHANCED POWER SUPPLY/CHARGERS

       eFlow3NB                    eFlow4NB                    eFlow6NB
       • UL Recognized in the U .S . and Canada   • UL Listed Sub-Assembly in the U .S . and   • UL Listed Sub-Assembly in the U .S . and
         for Access Control and Burglar .     Canada for Access Control and Burglar .    Canada for Access Control and Burglar .
         UL Recognized in the U .S . for Fire .    UL Listed Sub-Assembly in the U .S . for Fire .    UL Listed Sub-Assembly in the U .S . for Fire .
       • Two (2) 12VDC or 24VDC Class 2 Rated   • Two (2) 12VDC or 24VDC Class 2 Rated   • Two (2) 12VDC or 24VDC power outputs
         power-limited outputs:      power-limited outputs:      - Switched main (affected by fire alarm)
         - Switched main (affected by fire alarm)     - Switched main (affected by fire alarm)     - Unswitched aux . (continuous power)
         - Unswitched aux . (continuous power)    - Unswitched aux . (continuous power)  • 6 amp total supply current .
       • 2 amp total supply current .  • 4 amp total supply current .  Board dimensions: 4 .63”L x 7 .5”W x 1 .6”H
       Board dimensions: 4 .63”L x 7 .5”W x 1 .6”H  Board dimensions: 4 .63”L x 7 .5”W x 1 .6”H
    20
        Features:
        •  120VAC 60Hz . input .
        •  Additional aux . power-limited output rated @ 1 amp (unswitched) .
        •  Over voltage protection .
        •  Supervised Fire Alarm disconnect (latching or non-latching) .
        •  Low power cutoff - protects stand-by batteries from deep discharge .
        •  Built-in charger for sealed lead acid or gel type batteries .
        •  Zero voltage drop upon transfer to battery backup .
        •  Automatic switch over to stand-by battery when AC fails .
        •  AC fail, low battery and battery presence supervision .
                                                                EFLOW3NB
       * Above models available mounted in enclosure - refer to pgs. 63-65 for further info.
        Monitor and control eFlow Series Power Supply/Chargers with LINQ2 - Network Communication Modules (pg. 34)
                                                                               888.258.7669
                 ®
