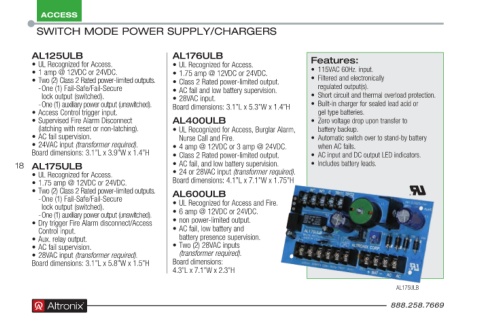

ACCESS
        SWITCH MODE POWER SUPPLY/CHARGERS

          AL125ULB                 AL176ULB                    Features:
       • UL Recognized for Access .  • UL Recognized for Access .
       • 1 amp @ 12VDC or 24VDC .  • 1 .75 amp @ 12VDC or 24VDC .  •  115VAC 60Hz . input .
       • Two (2) Class 2 Rated power-limited outputs .  • Class 2 Rated power-limited output .  •  Filtered and electronically
         - One (1) Fail-Safe/Fail-Secure  • AC fail and low battery supervision .    regulated output(s) .
           lock output (switched) .  • 28VAC input .           •  Short circuit and thermal overload protection .
         - One (1) auxiliary power output (unswitched) .  Board dimensions: 3 .1”L x 5 .3”W x 1 .4”H  •  Built-in charger for sealed lead acid or
       • Access Control trigger input .                          gel type batteries .
       • Supervised Fire Alarm Disconnect  AL400ULB            •  Zero voltage drop upon transfer to
         (latching with reset or non-latching) .  • UL Recognized for Access, Burglar Alarm,    battery backup .
       • AC fail supervision .       Nurse Call and Fire .     •  Automatic switch over to stand-by battery
       • 24VAC input (transformer required).  • 4 amp @ 12VDC or 3 amp @ 24VDC .    when AC fails .
       Board dimensions: 3 .1”L x 3 .9”W x 1 .4”H  • Class 2 Rated power-limited output .  •  AC input and DC output LED indicators .
    18 AL175ULB                    • AC fail, and low battery supervision .  •  Includes battery leads .
       • UL Recognized for Access .  • 24 or 28VAC input (transformer required).
       • 1 .75 amp @ 12VDC or 24VDC .  Board dimensions: 4 .1”L x 7 .1”W x 1 .75”H
       • Two (2) Class 2 Rated power-limited outputs .  AL600ULB
         - One (1) Fail-Safe/Fail-Secure  • UL Recognized for Access and Fire .
           lock output (switched) .  • 6 amp @ 12VDC or 24VDC .
         - One (1) auxiliary power output (unswitched) .
       • Dry trigger Fire Alarm disconnect/Access    • non power-limited output .
         Control input .           • AC fail, low battery and
       • Aux . relay output .        battery presence supervision .
       • AC fail supervision .     • Two (2) 28VAC inputs
       • 28VAC input (transformer required).    (transformer required).
       Board dimensions: 3 .1”L x 5 .8”W x 1 .5”H  Board dimensions:
                                   4 .3”L x 7 .1”W x 2 .3”H
                                                                                AL175ULB
