ACCESS

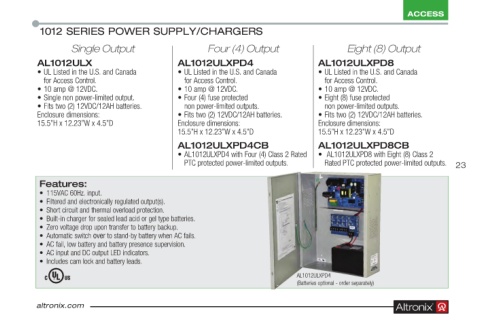

         1012 SERIES POWER SUPPLY/CHARGERS
               Single Output              Four (4) Output             Eight (8) Output
        AL1  012ULX                 AL1  012ULXPD4              AL1  012ULXPD8
        • UL Listed in the U .S . and Canada   • UL Listed in the U .S . and Canada   • UL Listed in the U .S . and Canada
          for Access Control .        for Access Control .        for Access Control .
        • 10 amp @ 12VDC .          • 10 amp @ 12VDC .          • 10 amp @ 12VDC .
        • Single non power-limited output .  • Four (4) fuse protected   • Eight (8) fuse protected
        • Fits two (2) 12VDC/12AH batteries .    non power-limited outputs .    non power-limited outputs .
        Enclosure dimensions:       • Fits two (2) 12VDC/12AH batteries .  • Fits two (2) 12VDC/12AH batteries .
        15 .5”H x 12 .23”W x 4 .5”D    Enclosure dimensions:    Enclosure dimensions:
                                    15 .5”H x 12 .23”W x 4 .5”D    15 .5”H x 12 .23”W x 4 .5”D
                                    AL1  012ULXPD4CB            AL1  012ULXPD8CB
                                    • AL1012ULXPD4 with Four (4) Class 2 Rated   •  AL1012ULXPD8 with Eight (8) Class 2
                                      PTC protected power-limited outputs .    Rated PTC protected power-limited outputs .  23
         Features:
         •  115VAC 60Hz . input .
         •  Filtered and electronically regulated output(s) .
         •  Short circuit and thermal overload protection .
         •  Built-in charger for sealed lead acid or gel type batteries .
         •  Zero voltage drop upon transfer to battery backup .
         •  Automatic switch over to stand-by battery when AC fails .
         •  AC fail, low battery and battery presence supervision .
         •  AC input and DC output LED indicators .
         •  Includes cam lock and battery leads .


                                                                  AL1012ULXPD8CB
