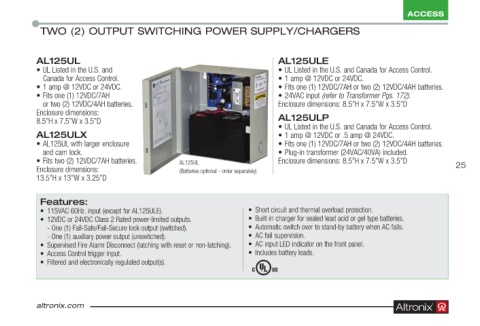

Page 25 - Altronix Product Guide

ACCESS
TWO (2) OUTPUT SWITCHING POWER SUPPLY/CHARGERS

AL125UL AL125ULE
• UL Listed in the U .S . and • UL Listed in the U .S . and Canada for Access Control .
Canada for Access Control . • 1 amp @ 12VDC or 24VDC .
• 1 amp @ 12VDC or 24VDC . • Fits one (1) 12VDC/7AH or two (2) 12VDC/4AH batteries .
• Fits one (1) 12VDC/7AH • 24VAC input (refer to Transformer Pgs. 172).
or two (2) 12VDC/4AH batteries . Enclosure dimensions: 8 .5”H x 7 .5”W x 3 .5”D
Enclosure dimensions: AL125ULP
8 .5”H x 7 .5”W x 3 .5”D • UL Listed in the U .S . and Canada for Access Control .
AL125ULX • 1 amp @ 12VDC or .5 amp @ 24VDC .
• AL125UL with larger enclosure • Fits one (1) 12VDC/7AH or two (2) 12VDC/4AH batteries .
and cam lock . • Plug-in transformer (24VAC/40VA) included .
• Fits two (2) 12VDC/7AH batteries . AL125UL Enclosure dimensions: 8 .5”H x 7 .5”W x 3 .5”D 25
Enclosure dimensions: (Batteries optional - order separately)
13 .5”H x 13”W x 3 .25”D
Features:
• 115VAC 60Hz . input (except for AL125ULE) . • Short circuit and thermal overload protection .
• 12VDC or 24VDC Class 2 Rated power-limited outputs . • Built-in charger for sealed lead acid or gel type batter ies .
- One (1) Fail-Safe/Fail-Secure lock output (switched) . • Automatic switch over to stand-by battery when AC fails .
- One (1) auxiliary power output (unswitched) . • AC fail supervision .
• Supervised Fire Alarm Disconnect (latching with reset or non-latching) . • AC input LED indicator on the front panel .
• Access Control trigger input . • Includes battery leads .
• Filtered and electronically regulated output(s) .
