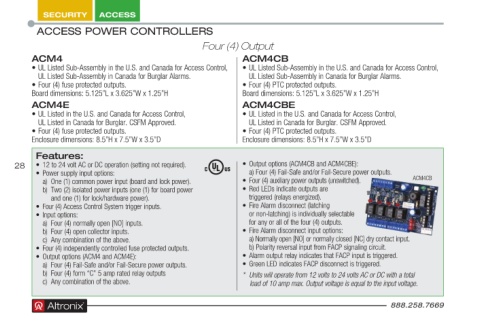

Page 28 - Altronix Product Guide

SECURITY ACCESS
ACCESS POWER CONTROLLERS
Four (4) Output
ACM4 ACM4CB
• UL Listed Sub-Assembly in the U .S . and Canada for Access Control, • UL Listed Sub-Assembly in the U .S . and Canada for Access Control,
UL Listed Sub-Assembly in Canada for Burglar Alarms . UL Listed Sub-Assembly in Canada for Burglar Alarms .
• Four (4) fuse protected outputs . • Four (4) PTC protected outputs .
Board dimensions: 5 .125”L x 3 .625”W x 1 .25”H Board dimensions: 5 .125”L x 3 .625”W x 1 .25”H
ACM4E ACM4CBE
• UL Listed in the U .S . and Canada for Access Control, • UL Listed in the U .S . and Canada for Access Control,
UL Listed in Canada for Burglar . CSFM Approved . UL Listed in Canada for Burglar . CSFM Approved .
• Four (4) fuse protected outputs . • Four (4) PTC protected outputs .
Enclosure dimensions: 8 .5”H x 7 .5”W x 3 .5”D Enclosure dimensions: 8 .5”H x 7 .5”W x 3 .5”D
Features:
28 • 12 to 24 volt AC or DC operation (setting not required) . • Output options (ACM4CB and ACM4CBE):
• Power supply input options: a) Four (4) Fail-Safe and/or Fail-Secure power outputs . ACM4CB
a) One (1) common power input (board and lock power) . • Four (4) auxiliary power outputs (unswitched) .
b) Two (2) isolated power inputs (one (1) for board power • Red LEDs indicate outputs are
and one (1) for lock/hardware power) . triggered (relays energized) .
• Four (4) Access Control System trigger inputs . • Fire Alarm disconnect (latching
• Input options: or non-latching) is individually selectable
a) Four (4) normally open [NO] inputs . for any or all of the four (4) outputs .
b) Four (4) open collector inputs . • Fire Alarm disconnect input options:
c) Any combination of the above . a) Normally open [NO] or normally closed [NC] dry contact input .
• Four (4) independently controlled fuse protected outputs . b) Polarity reversal input from FACP signaling circuit .
• Output options (ACM4 and ACM4E): • Alarm output relay indicates that FACP input is triggered .
a) Four (4) Fail-Safe and/or Fail-Secure power outputs . • Green LED indicates FACP disconnect is triggered .
b) Four (4) form “C” 5 amp rated relay outputs * Units will operate from 12 volts to 24 volts AC or DC with a total
c) Any combination of the above . load of 10 amp max. Output voltage is equal to the input voltage.
