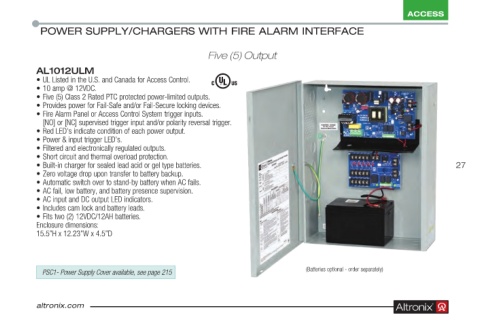

Page 27 - Altronix Product Guide

ACCESS
POWER SUPPLY/CHARGERS WITH FIRE ALARM INTERFACE

Five (5) Output
AL1012ULM
• UL Listed in the U .S . and Canada for Access Control .
• 10 amp @ 12VDC .
• Five (5) Class 2 Rated PTC protected power-limited outputs .
• Provides power for Fail-Safe and/or Fail-Secure locking devices .
• Fire Alarm Panel or Access Control System trigger inputs .
[NO] or [NC] supervised trigger input and/or polarity reversal trigger .
• Red LED’s indicate condition of each power output .
• Power & input trigger LED’s .
• Filtered and electronically regulated outputs .
• Short circuit and thermal overload protection .
• Built-in charger for sealed lead acid or gel type batteries . 27
• Zero voltage drop upon transfer to battery backup .
• Automatic switch over to stand-by battery when AC fails .
• AC fail, low battery, and battery presence supervision .
• AC input and DC output LED indicators .
• Includes cam lock and battery leads .
• Fits two (2) 12VDC/12AH batteries .
Enclosure dimensions:
15 .5”H x 12 .23”W x 4 .5”D

PSC1- Power Supply Cover available, see page 215 (Batteries optional - order separately)
