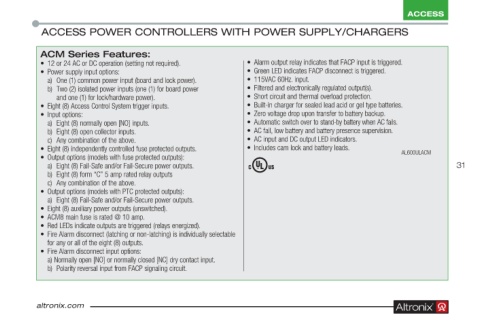

Page 31 - Altronix Product Guide

ACCESS
ACCESS POWER CONTROLLERS WITH POWER SUPPLY/CHARGERS

ACM Series Features:
• 12 or 24 AC or DC operation (setting not required) . • Alarm output relay indicates that FACP input is triggered .
• Power supply input options: • Green LED indicates FACP disconnect is triggered .
a) One (1) common power input (board and lock power) . • 115VAC 60Hz . input .
b) Two (2) isolated power inputs (one (1) for board power • Filtered and electronically regulated output(s) .
and one (1) for lock/hardware power) . • Short circuit and thermal overload protection .
• Eight (8) Access Control System trigger inputs . • Built-in charger for sealed lead acid or gel type batteries .
• Input options: • Zero voltage drop upon transfer to battery backup .
a) Eight (8) normally open [NO] inputs . • Automatic switch over to stand-by battery when AC fails .
b) Eight (8) open collector inputs . • AC fail, low battery and battery presence supervision .
c) Any combination of the above . • AC input and DC output LED indicators .
• Eight (8) independently controlled fuse protected outputs . • Includes cam lock and battery leads . AL600ULACM
• Output options (models with fuse protected outputs):
a) Eight (8) Fail-Safe and/or Fail-Secure power outputs . 31
b) Eight (8) form “C” 5 amp rated relay outputs
c) Any combination of the above .
• Output options (models with PTC protected outputs):
a) Eight (8) Fail-Safe and/or Fail-Secure power outputs .
• Eight (8) auxiliary power outputs (unswitched) .
• ACM8 main fuse is rated @ 10 amp .
• Red LEDs indicate outputs are triggered (relays energized) .
• Fire Alarm disconnect (latching or non-latching) is individually selectable
for any or all of the eight (8) outputs .
• Fire Alarm disconnect input options:
a) Normally open [NO] or normally closed [NC] dry contact input .
b) Polarity reversal input from FACP signaling circuit .
