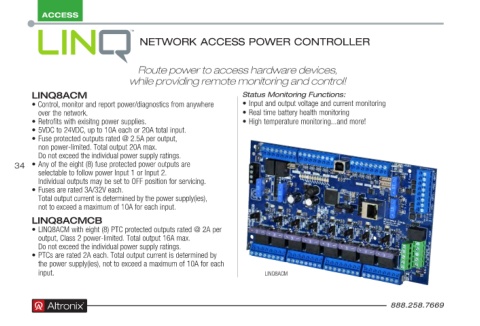

Page 34 - Altronix Product Guide
P. 34
ACCESS
™
NETWORK ACCESS POWER CONTROLLER
Route power to access hardware devices,
while providing remote monitoring and control!
LINQ8ACM Status Monitoring Functions:
• Control, monitor and report power/diagnostics from anywhere • Input and output voltage and current monitoring
over the network . • Real time battery health monitoring
• Retrofits with exisitng power supplies . • High temperature monitoring . . .and more!
• 5VDC to 24VDC, up to 10A each or 20A total input .
• Fuse protected outputs rated @ 2 .5A per output,
non power-limited . Total output 20A max .
Do not exceed the individual power supply ratings .
34 • Any of the eight (8) fuse protected power outputs are
selectable to follow power Input 1 or Input 2 .
Individual outputs may be set to OFF position for servicing .
• Fuses are rated 3A/32V each .
Total output current is determined by the power supply(ies),
not to exceed a maximum of 10A for each input .
LINQ8ACMCB
• LINQ8ACM with eight (8) PTC protected outputs rated @ 2A per
output, Class 2 power-limited . Total output 16A max .
Do not exceed the individual power supply ratings .
• PTCs are rated 2A each . Total output current is determined by
the power supply(ies), not to exceed a maximum of 10A for each
input . LINQ8ACM
