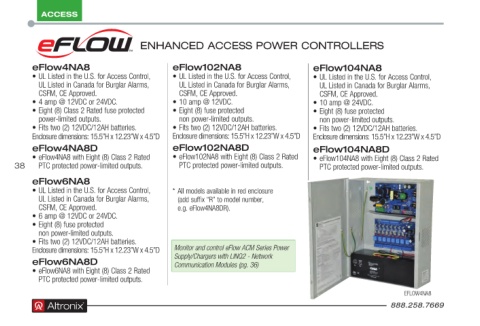

Page 38 - Altronix Product Guide

ACCESS

ENHANCED ACCESS POWER CONTROLLERS

eFlow4NA8 eFlow102NA8 eFlow104NA8
• UL Listed in the U .S . for Access Control, • UL Listed in the U .S . for Access Control, • UL Listed in the U .S . for Access Control,
UL Listed in Canada for Burglar Alarms, UL Listed in Canada for Burglar Alarms, UL Listed in Canada for Burglar Alarms,
CSFM, CE Approved . CSFM, CE Approved . CSFM, CE Approved .
• 4 amp @ 12VDC or 24VDC . • 10 amp @ 12VDC . • 10 amp @ 24VDC .
• Eight (8) Class 2 Rated fuse protected • Eight (8) fuse protected • Eight (8) fuse protected
power-limited outputs . non power-limited outputs . non power-limited outputs .
• Fits two (2) 12VDC/12AH batteries . • Fits two (2) 12VDC/12AH batteries . • Fits two (2) 12VDC/12AH batteries .
Enclosure dimensions: 15 .5”H x 12 .23”W x 4 .5”D Enclosure dimensions: 15 .5”H x 12 .23”W x 4 .5”D Enclosure dimensions: 15 .5”H x 12 .23”W x 4 .5”D
eFlow4NA8D eFlow102NA8D eFlow104NA8D
• eFlow4NA8 with Eight (8) Class 2 Rated • eFlow102NA8 with Eight (8) Class 2 Rated • eFlow104NA8 with Eight (8) Class 2 Rated
38 PTC protected power-limited outputs . PTC protected power-limited outputs . PTC protected power-limited outputs .
eFlow6NA8
• UL Listed in the U .S . for Access Control, * All models available in red enclosure
UL Listed in Canada for Burglar Alarms, (add suffix “R” to model number,
CSFM, CE Approved . e .g . eFlow4NA8DR) .
• 6 amp @ 12VDC or 24VDC .
• Eight (8) fuse protected
non power-limited outputs .
• Fits two (2) 12VDC/12AH batteries .
Enclosure dimensions: 15 .5”H x 12 .23”W x 4 .5”D Monitor and control eFlow ACM Series Power
eFlow6NA8 D Supply/Chargers with LINQ2 - Network
Communication Modules (pg. 36)
• eFlow6NA8 with Eight (8) Class 2 Rated
PTC protected power-limited outputs .
EFLOW4NA8
