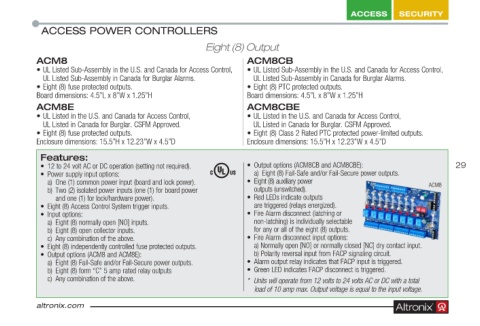

Page 29 - Altronix Product Guide

ACCESS SECURITY
ACCESS POWER CONTROLLERS
Eight (8) Output
ACM8 ACM8CB
• UL Listed Sub-Assembly in the U .S . and Canada for Access Control, • UL Listed Sub-Assembly in the U .S . and Canada for Access Control,
UL Listed Sub-Assembly in Canada for Burglar Alarms . UL Listed Sub-Assembly in Canada for Burglar Alarms .
• Eight (8) fuse protected outputs . • Eight (8) PTC protected outputs .
Board dimensions: 4 .5”L x 8”W x 1 .25”H Board dimensions: 4 .5”L x 8”W x 1 .25”H
ACM8E ACM8CBE
• UL Listed in the U .S . and Canada for Access Control, • UL Listed in the U .S . and Canada for Access Control,
UL Listed in Canada for Burglar . CSFM Approved . UL Listed in Canada for Burglar . CSFM Approved .
• Eight (8) fuse protected outputs . • Eight (8) Class 2 Rated PTC protected power-limited outputs .
Enclosure dimensions: 15 .5”H x 12 .23”W x 4 .5”D Enclosure dimensions: 15 .5”H x 12 .23”W x 4 .5”D
Features:
• 12 to 24 volt AC or DC operation (setting not required) . • Output options (ACM8CB and ACM8CBE): 29
• Power supply input options: a) Eight (8) Fail-Safe and/or Fail-Secure power outputs .
a) One (1) common power input (board and lock power) . • Eight (8) auxiliary power ACM8
b) Two (2) isolated power inputs (one (1) for board power outputs (unswitched) .
and one (1) for lock/hardware power) . • Red LEDs indicate outputs
• Eight (8) Access Control System trigger inputs . are triggered (relays energized) .
• Input options: • Fire Alarm disconnect (latching or
a) Eight (8) normally open [NO] inputs . non-latching) is individually selectable
b) Eight (8) open collector inputs . for any or all of the eight (8) outputs .
c) Any combination of the above . • Fire Alarm disconnect input options:
• Eight (8) independently controlled fuse protected outputs . a) Normally open [NO] or normally closed [NC] dry contact input .
• Output options (ACM8 and ACM8E): b) Polarity reversal input from FACP signaling circuit .
a) Eight (8) Fail-Safe and/or Fail-Secure power outputs . • Alarm output relay indicates that FACP input is triggered .
b) Eight (8) form “C” 5 amp rated relay outputs • Green LED indicates FACP disconnect is triggered .
c) Any combination of the above . * Units will operate from 12 volts to 24 volts AC or DC with a total
load of 10 amp max. Output voltage is equal to the input voltage.
