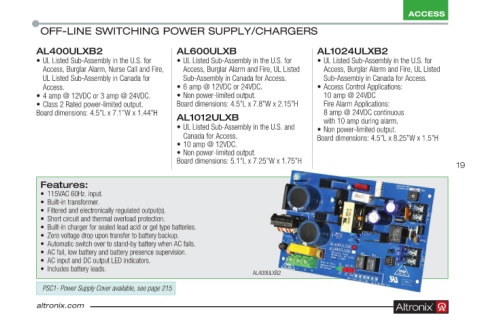

Page 19 - Altronix Product Guide

ACCESS
OFF-LINE SWITCHING POWER SUPPLY/CHARGERS

AL400ULXB2 AL600ULXB AL1024ULXB2
• UL Listed Sub-Assembly in the U .S . for • UL Listed Sub-Assembly in the U .S . for • UL Listed Sub-Assembly in the U .S . for
Access, Burglar Alarm, Nurse Call and Fire, Access, Burglar Alarm and Fire, UL Listed Access, Burglar Alarm and Fire, UL Listed
UL Listed Sub-Assembly in Canada for Sub-Assembly in Canada for Access . Sub-Assembly in Canada for Access .
Access . • 6 amp @ 12VDC or 24VDC . • Access Control Applications:
• 4 amp @ 12VDC or 3 amp @ 24VDC . • Non power-limited output . 10 amp @ 24VDC
• Class 2 Rated power-limited output . Board dimensions: 4 .5”L x 7 .8”W x 2 .15”H Fire Alarm Applications:
Board dimensions: 4 .5”L x 7 .1”W x 1 .44”H 8 amp @ 24VDC continuous
AL1012ULXB with 10 amp during alarm .
• UL Listed Sub-Assembly in the U .S . and • Non power-limited output .
Canada for Access . Board dimensions: 4 .5”L x 8 .25”W x 1 .5”H
• 10 amp @ 12VDC .
• Non power-limited output .
Board dimensions: 5 .1”L x 7 .25”W x 1 .75”H 19

Features:
• 115VAC 60Hz . input .
• Built-in transformer .
• Filtered and electronically regulated output(s) .
• Short circuit and thermal overload protection .
• Built-in charger for sealed lead acid or gel type batteries .
• Zero voltage drop upon transfer to battery backup .
• Automatic switch over to stand-by battery when AC fails .
• AC fail, low battery and battery presence supervision .
• AC input and DC output LED indicators .
• Includes battery leads .
AL400ULXB2
PSC1- Power Supply Cover available, see page 215
