Altronix ®

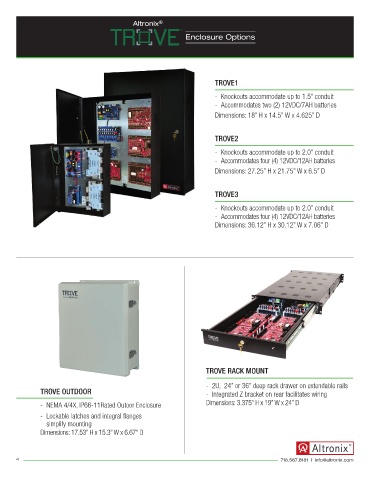

                                                              Enclosure Options





                                                                       TROVE1

                                                                       -  Knockouts accommodate up to 1.5” conduit
                                                                       -  Accommodates two (2) 12VDC/7AH batteries
                                                                       Dimensions: 18” H x 14.5” W x 4.625” D


                                                                       TROVE2

                                                                       -  Knockouts accommodate up to 2.0” conduit
                                                                       -  Accommodates four (4) 12VDC/12AH batteries
                                                                       Dimensions: 27.25” H x 21.75” W x 6.5” D


                                                                       TROVE3

                                                                       -  Knockouts accommodate up to 2.0” conduit
                                                                       -  Accommodates four (4) 12VDC/12AH batteries
                                                                       Dimensions: 36.12” H x 30.12” W x 7.06” D




         TM250                                                                             TM400

         -  Knockouts accommodate                                                          -  Knockouts accommodate
           up to 1” conduit                                                                  up to 1” conduit
         -  Accommodates a single                                                          -  Accommodates two (2)
           12VDC/4AH battery                                                                 12VDC/7AH batteries
         Dimensions:                                                                       Dimensions
         11” H x 10.5” W x 4.625” D                                                        15.5” H x 12” W x 4.5” D





















           TROVE OUTDOOR                                             TROVE RACK MOUNT

           -  NEMA 4/4X, IP66-11Rated Outoor Enclosure               -  Integrated Z bracket on rear facilitates wiring
           -  Lockable latches and integral flanges simplify mounting  -  2U drawer on extendable rails
           Dimensions: 17.53” H x 15.3” W x 6.67” D                    (rails extend to 36” for deeper racks)
                                                                     Dimensions: 3.375” H x 19” W x 24” D
