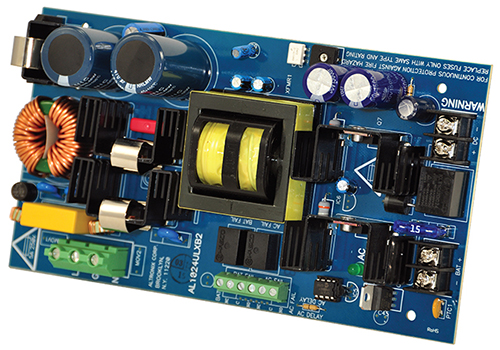

AL1024ULXB2

Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board

Altronix AL1024ULXB2 UL Listed Sub-Assembly power supply/charger converts 115VAC, 60Hz input into a single 24VDC non power-limited output. It also offers a suite of features that includes AC fail supervision, battery presence, and low battery supervision.

  • Input
    • Input 115VAC / 60Hz, 4.2A.
  • Output
    • 24VDC output (UL 1481).
    • 8A continuous supply current with 10A supply current during alarm (UL 1481).
    • 24VDC @ 10A (UL 294).
    • Filtered and electronically regulated output.
    • Maximum Ripple: 250mV P/P.
    • Short circuit and thermal overload protection.
  • Battery Backup
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • Zero voltage drop when switched over to battery backup.
    • (Batteries are sold separately).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Low battery and battery presence supervision (form "C" contacts).
  • Additional Features
    • Short circuit and thermal overload protection.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr (approx.): 123 BTU/Hr.
    • System AC input VA requirement: 483VA.
UL Listed For:
Power Supplies for Fire Protective Signaling Systems (UL1481)
Power Supplies for use with Burglar Alarm Systems (UL603)
Access Control System Units (UL294)
cUL Listed For:
CSA Standard C22.2 No.205-M1983, Signal Equipment
Dimensions (approximate):
  • 4.505"W x 8.4"L x 1.955"H (114.427 mm W x 213.36 mm L x 49.657 mm H).
Weights (approximate):
  • Product Weight: 1.15 Lbs. (0.52 kg).
  • Shipping Weight: 1.45 Lbs. (0.66 kg).
