eBridge16PCRM

EoC 16 Port Receiver, 25Mbps per port, Passes PoE/PoE+, Requires Compatible Transceiver, 1U

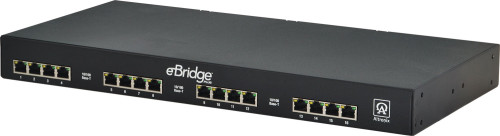

Altronix eBridge16PCRM is an sixteen (16) port rack mount EoC Receiver that transmits data and power over coax cable in a PoE compliant format. It is powered by a UL Listed limited power source such as a midspan or endspan. Unit passes PoE/PoE+ up the coax to an eBridge1PCT/ eBridge1PCTX transceiver. The transceiver in turn delivers that PoE compliant power to an edge device/camera. This plug and play unit facilitates system upgrades from analog to IP utilizing existing legacy Coax and eliminates the costs and labor associated with installing new network cabling. Data transmission and power over the Coax is possible up to 500m in comparison to 100m Ethernet distance (CAT5e). A maximum range from head end to the edge device/camera is 700m taking into consideration that up to 100m of structured cable may be deployed from the receiver to the network switch and the transceiver to the edge device/camera.

  • Input
    • Powered by a UL Listed limited power source, PoE midspan or endspan.
  • Ethernet
    • Connectivity: sixteen (16) RJ45, auto-crossover.
    • Wire type: 4-pair CAT5 or better structured cable.
    • Distance: up to 100m.
    • Speed: 10/100BaseT, half/full duplex, auto negotiation.
    • PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by eBridge transceiver.
    • Throughput is rated to pass 25Mbps of data at distances up to 457m with proper headend equipment which supports Megapixel, HD720, HD1080.
  • Coax
    • Distance: up to 457m for power delivery of coax.
    • Connectivity: sixteen (16) BNC, RG-59/U or similar.
  • LED Indicators
    • Blue LED - Coax link connection.
    • Green - PoE ON.
    • Green - Power ON.
    • Yellow and Green LED (RJ45) IP Link status, 10/100Base-T/active.
  • Environmental
    • Operating Temperature: - 20° C to +49° C (- 4° F to 120.2° F ).
    • Storage Temperature: - 30° to +70° C ( - 22° to 158° F ).
    • Relative humidity: 20 to 85%, non-condensing.
    • BTU/Hr. (approx.): 409 BTU/Hr. max.
  • Operating Altitude
    • - 304.8 to 2,000m (-1000 to 6,561.679 ft.).
  • Functions
    • Auto detection and protection of legacy non-PoE cameras/devices.
cUL Listed For:
Information Technology Equipment

CE Compliant

C-TICK Compliant
Enclosure:
  • Modular 1U standard EIA 19" rack mount chassis.
  • Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).
Weights (approximate):
  • Product Weight: 3.7 Lbs. (1.68 kg).
  • Shipping Weight: 5.1 Lbs. (2.31 kg).
