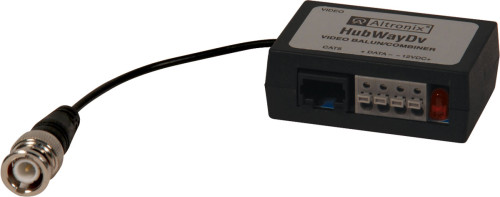

HubWayDvi

UTP Passive Video/Data/Power Balun, Converts 24VAC/28VAC to Isolated 12VDC

Altronix HubWayDvi Video Balun/Combiner is an accessory that interfaces with HubWay and HubSat UTP Transceiver Hubs to transmit video, data, and isolated power to 12VDC fixed or PTZ indoor or outdoor cameras.

  • Video
    • 75 ohm video outputs.
  • Data
    • RS422/RS485 data output.
  • Power
    • 0.5A supply current.
  • Indicators (LED)
    • Power Red LED indicator.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
UL Listed For:
Commercial CCTV Equipment (UL2044)
cUL Listed For:
CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment
Enclosure:
  • Modular plastic case.
  • Dimensions 2.38"W x 1"H x 1.62"D (60 mm W x 25 mm H x 41 mm D).
Weights (approximate):
  • Product Weight: 0.12 Lbs. (0.054 kg).
  • Shipping Weight: 0.15 Lbs. (0.068 kg).
