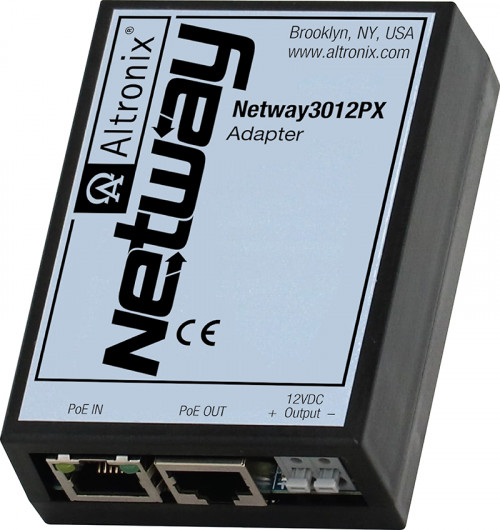

NetWay3012PX

PoE Adapter, Converts PoE/PoE+ into 12VDC

Altronix NetWay3012PX converts 802.3bt (90W) to simultaneous 12VDC/1A and 802.3at PoE+ (25W) outputs for applications including PoE cameras and external microphones, control boards, switching equipment, and more for 60W total output.

  • Input
    • 802.3bt (90W) 4PPoE
  • Function
    • Converts 802.3bt (90W) to 802.3at PoE+ (25W) and 12VDC (25W/1A) simultaneously
  • PoE Port
    • Single port rated up to 25W max.
    • IEEE 802.3af, 802.3at compliant
    • Connectivity: RJ45, auto-crossover
    • Wire type: 4-pair CAT5e
    • Distance: up to 100m
    • Speed: 10/100/1000 Mbps
  • Power Output
    • 12VDC up to 2A
    • 60W total power combined with PoE
  • Features
    • Auto detection and protection of legacy non-PoE cameras/devices
    • Compact insulated housing
  • Indicators (LED)
    • Yellow and Green LEDs: IP Link status, 10/100/1000 Base-T/active
    • Green LED: PoE ON
    • Red LED: Power ON
  • Temperature
    • Operating temperature (90W): – 40ºC to 75ºC (– 40ºF to 167ºF)
    • Storage temperature: – 40ºC to 75ºC (– 40ºF to 167ºF)
    • Relative Humidity 85% +/- 5%.
    • Operating Altitude: - 304.8 to 2,000m.

CE Compliant
Enclosure:
  • Modular plastic case.
  • Dimensions 2.5"W x 1"H x 3.8"D (64 mm W x 25 mm H x 97 mm D).
Weights (approximate):
  • Product Weight: 0.25 Lbs. (0.11 kg).
  • Shipping Weight: 0.3 Lbs. (0.14 kg).
